SS3003CH-TL-W

Specifications

Voltage Forward Vf Max If

420mV @ 3A

Number Of Phases

1

Applications

GENERAL PURPOSE

JESD-609 Kodu

e6

Terminal Pozisyonu

DUAL

Voltage Dc Reverse Vr Max

30V

Reverse Recovery Time

20 ns

Reverse Currentmax

1400μA

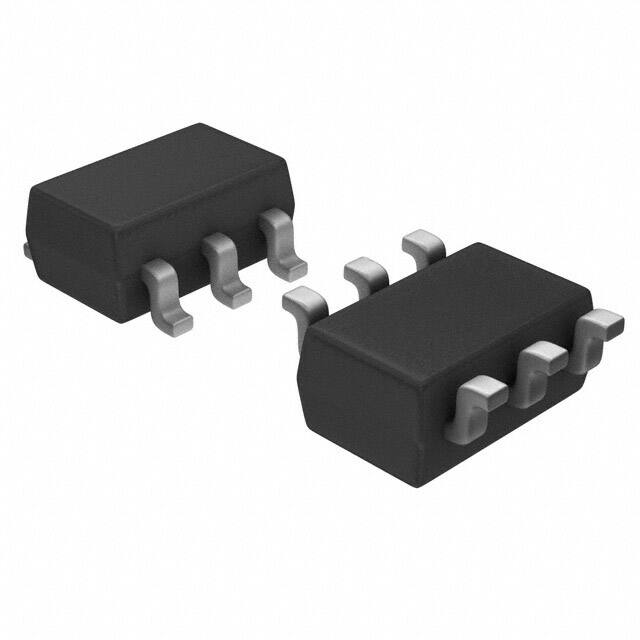

Kılıf / Paket

SC-74, SOT-457

Nonrep Pk Forward Currentmax

20A

Diode Element Material

SILICON

Montaj Tipi

Surface Mount

Capacitance Vr F

880pF @ 0V 1MHz

Terminal Kaplaması

Tin/Bismuth (Sn/Bi)

Average Rectified Current

3A

REACH Uyumluluk Kodu

not_compliant

Current Reverse Leakage Vr

1.4mA @ 15V

Configuration

SINGLE

Number Of Elements

1

Diode Type

Schottky

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Formu

GULL WING

Output Currentmax

3A

Jesd30 Code

R-PDSO-G6

Terminal Sayısı

6

Montaj

Surface Mount

Parça Durumu

Active

Kurşunsuz

Lead Free

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tape & Reel (TR)

Operating Temperature Max

125°C

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

2 Weeks

Max Reverse Voltage Dc

30V

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Operating Temperature Junction

-55°C~125°C

Lifecycle Status

ACTIVE (Last Updated: 1 week ago)
