Volume pricing
- 1+ pcs$4.93
- 10+ pcs$4.65
- 100+ pcs$4.39
- 500+ pcs$4.14
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Kurşunsuz Kodu
- yes
- Terminal Kaplaması
- Tin (Sn)
- Terminal Pozisyonu
- SINGLE
- Configuration
- SINGLE
- Number Of Phases
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Weight
- 6.33g
- Terminal Sayısı
- 2
- Max Reverse Voltage Dc
- 1kV
- Applications
- ULTRA FAST SOFT RECOVERY POWER
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Montaj
- Through Hole
- Reverse Recovery Time
- 200 ns
- Ambalaj
- Tube
- Forward Current
- 80A
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Seri
- Automotive, AEC-Q101
- Diode Element Material
- SILICON
- Voltage Dc Reverse Vr Max
- 1000V
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Through Hole

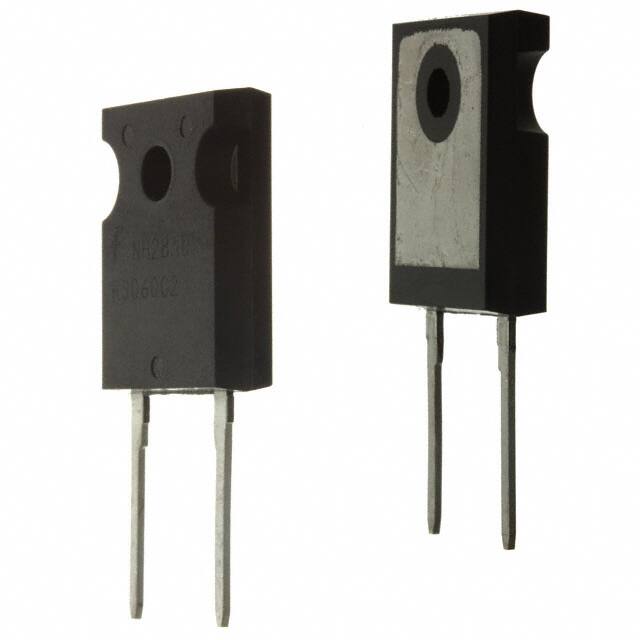

- Kılıf / Paket
- TO-247-2
- REACH Uyumluluk Kodu
- not_compliant
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Fabrika Tedarik Süresi
- 4 Weeks
- Jesd30 Code
- R-PSFM-T2
- Parça Durumu
- Active
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- Additional Feature
- FREE WHEELING DIODE
- Average Rectified Current
- 80A
- Operating Temperature Junction
- -65°C~175°C
- Max Repetitive Reverse Voltage Vrrm
- 1kV
- Reverse Currentmax
- 250μA
- Number Of Elements
- 1
- Voltage Forward Vf Max If
- 1.9V @ 80A
- JESD-609 Kodu
- e3
- Min. Çalışma Sıcaklığı
- -55°C
- Maks. Çalışma Sıcaklığı
- 175°C
- Diode Type
- Standard
- Current Reverse Leakage Vr
- 250μA @ 80V
