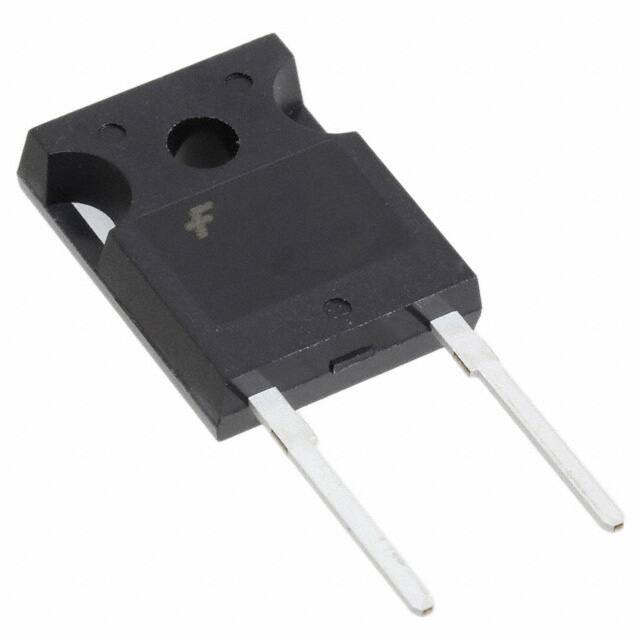

RURG5060-F085

Specifications

Current Reverse Leakage Vr

250μA @ 600V

Diode Type

Standard

Forward Voltage

1.6V

JESD-609 Kodu

e3

Min. Çalışma Sıcaklığı

-55°C

Maks. Çalışma Sıcaklığı

175°C

Voltage Forward Vf Max If

1.6V @ 50A

Max Repetitive Reverse Voltage Vrrm

600V

Number Of Elements

1

Operating Temperature Junction

-55°C~175°C

Average Rectified Current

50A

Additional Feature

FREE WHEELING DIODE

Jedec95 Code

TO-247AB

Max Forward Surge Current Ifsm

150A

Kılıf / Paket

TO-247-2

Fabrika Tedarik Süresi

4 Weeks

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

REACH Uyumluluk Kodu

not_compliant

Parça Durumu

Active

Jesd30 Code

R-PSFM-T2

Montaj Tipi

Through Hole

Max Surge Current

150A

RoHS Durumu

ROHS3 Compliant

Peak Reverse Current

250μA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Recovery Time

285 ns

Diode Element Material

SILICON NITRIDE

Seri

Automotive, AEC-Q101

Reverse Recovery Time

90 ns

Reverse Voltage Dc

600V

Forward Current

50A

Ambalaj

Tube

Terminal Sayısı

2

Applications

ULTRA FAST SOFT RECOVERY POWER

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Max Reverse Voltage Dc

600V

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

6.33g

Element Configuration

Single
