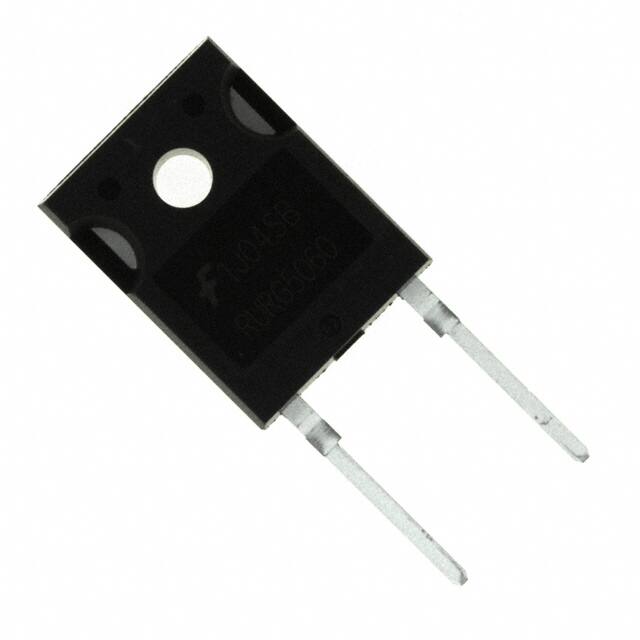

RURG5060

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2002

Weight

6.33g

Terminal Sayısı

2

Power Dissipation

150W

Applications

ULTRA FAST SOFT RECOVERY

Number Of Phases

1

Terminal Kaplaması

Tin (Sn)

Kurşunsuz Kodu

yes

Peak Reverse Current

250μA

Max Surge Current

500A

Uzunluk

15.8mm

Ambalaj

Tube

Forward Current

50A

Recovery Time

75 ns

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Additional Feature

FREE WHEELING DIODE

Operating Temperature Junction

-65°C~175°C

Parça Durumu

Active

Kılıf / Paket

TO-247-2

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Voltage Rated Dc

600V

Maks. Çalışma Sıcaklığı

175°C

Genişlik

4.82mm

JESD-609 Kodu

e3

Forward Voltage

1.6V

Case Connection

CATHODE

Current Reverse Leakage Vr

250μA @ 600V

Akım Değeri

50A

Max Repetitive Reverse Voltage Vrrm

600V

Yükseklik

20.8mm

Pin Sayısı

2

Reverse Voltage

600V

Voltage Forward Vf Max If

1.6V @ 50A

Montaj

Through Hole

Max Reverse Voltage Dc

600V

Element Configuration

Single

Radyasyon Dayanımı

No

Output Current

50A

RoHS Durumu

ROHS3 Compliant
