RURD620CC

Specifications

Terminal Sayısı

2

Applications

ULTRA FAST SOFT RECOVERY

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Temel Parça No

RURD620CC

Kurşunsuz Kodu

yes

Terminal Kaplaması

Tin (Sn)

Terminal Pozisyonu

SINGLE

Number Of Phases

1

Montaj Tipi

Through Hole

Yüzey Montaj

YES

Current Average Rectified Io

6A

RoHS Durumu

Non-RoHS Compliant

ECCN Kodu

EAR99

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Element Material

SILICON

Voltage Dc Reverse Vr Max

200V

Nonrep Pk Forward Currentmax

60A

Reverse Recovery Time

30ns

Rep Pk Reverse Voltagemax

200V

Ambalaj

Tube

Operating Temperature Min

-65°C

Diode Configuration

1 Pair Common Cathode

Additional Feature

FREE WHEELING DIODE

Jedec95 Code

TO-252AA

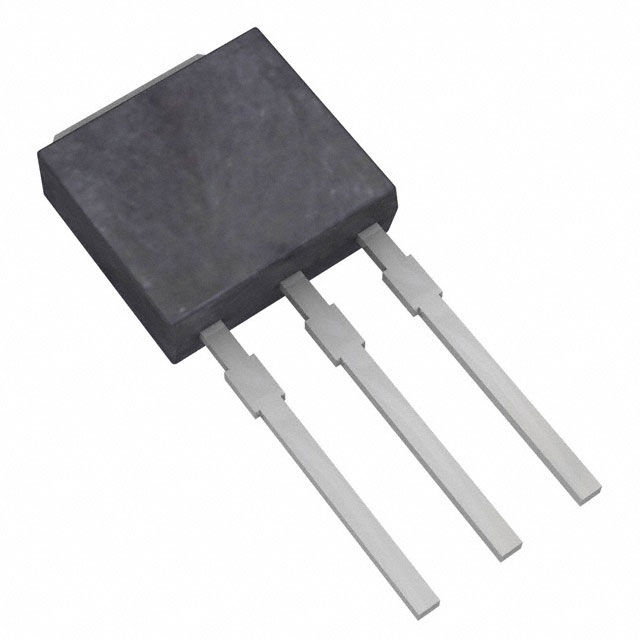

Kılıf / Paket

TO-251-3 Short Leads, IPak, TO-251AA

REACH Uyumluluk Kodu

not_compliant

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Parça Durumu

Obsolete

Jesd30 Code

R-PSSO-G2

HTS Kodu

8541.10.00.80

Diode Type

Standard

Current Reverse Leakage Vr

100μA @ 200V

Qualification Status

Not Qualified

Output Currentmax

6A

JESD-609 Kodu

e3

Voltage Forward Vf Max If

1V @ 6A

Terminal Formu

GULL WING

Operating Temperature Max

175°C

Number Of Elements

2
