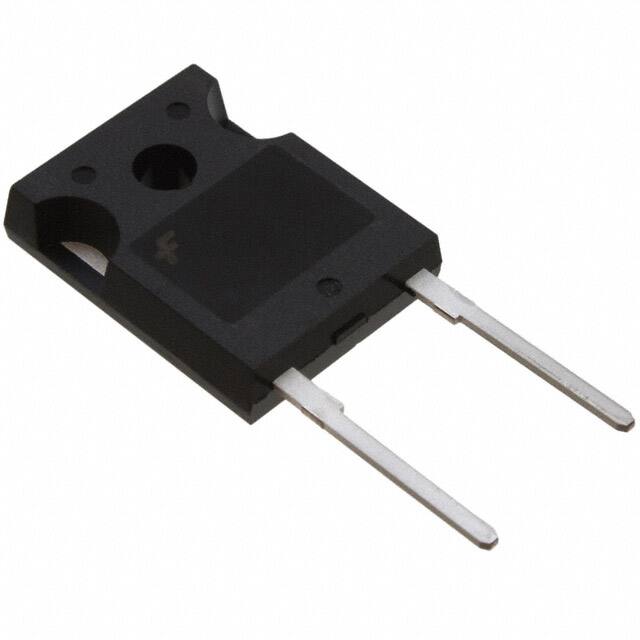

RHRG30120

Specifications

Reverse Recovery Time

85 ns

Montaj Tipi

Through Hole

ECCN Kodu

EAR99

Kılıf / Paket

TO-247-2

Diode Element Material

SILICON

Max Surge Current

300A

Element Configuration

Single

Terminal Kaplaması

Tin (Sn)

HTS Kodu

8541.10.00.80

Genişlik

4.82mm

Peak Reverse Current

250μA

Min. Çalışma Sıcaklığı

-65°C

Parça Durumu

Active

Max Forward Surge Current Ifsm

300A

Current Reverse Leakage Vr

250μA @ 1200V

Applications

HYPERFAST SOFT RECOVERY

Diode Type

Standard

Reverse Voltage

1.2kV

Terminal Sayısı

2

Recovery Time

85 ns

Uzunluk

15.8mm

Output Current

30A

Pin Sayısı

2

RoHS Durumu

ROHS3 Compliant

Operating Temperature Junction

-65°C~175°C

Max Junction Temperature Tj

175°C

Reach Svhc

No SVHC

Forward Voltage

3.2V

Kurşunsuz

Lead Free

Forward Current

30A

Max Reverse Voltage Dc

1.2kV

Voltage Dc Reverse Vr Max

1200V

Yükseklik

24.75mm

Kurşunsuz Kodu

yes

Number Of Phases

1

Number Of Elements

1

Akım Değeri

30A

Average Rectified Current

30A

Additional Feature

FREEWHEELING DIODE

Power Dissipation

125W
