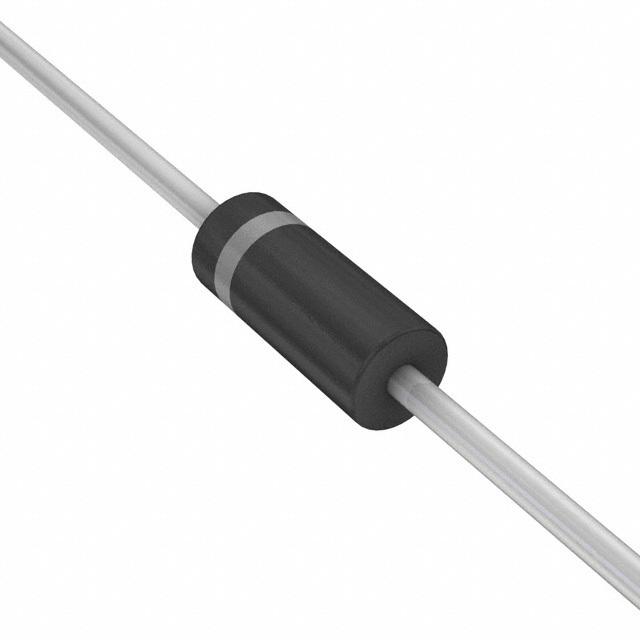

P6KE13A

Specifications

Yayın Yılı

2009

Max Breakdown Voltage

13.7V

Power Rating

600W

Current Test

1mA

Yükseklik

6.35mm

Kurşunsuz

Lead Free

Peak Pulse Power

600W

Voltage Breakdown Min

12.4V

Current Leakage

5μA

Operating Supply Voltage

11.1V

Uzunluk

6.35mm

Weight

300mg

Maks. Çalışma Sıcaklığı

150°C

Genişlik

6.35mm

Power Dissipation Max

600W

Voltage Breakdown

12.4V

Voltage Rated Dc

13V

Peak Pulse Current

33A

Kapasitans

1.6pF

Max Reverse Leakage Current

5μA

Composition

Zener

Montaj

Through Hole

Radyasyon Dayanımı

No

Reverse Breakdown Voltage

12.4V

Number Of Unidirectional Channels

1

Pin Sayısı

2

Polarity

Unidirectional

Terminal

Axial

Number Of Channels

1

RoHS Durumu

RoHS Compliant

Reach Svhc

No SVHC

Min. Çalışma Sıcaklığı

-55°C

Power Line Protection

No

Max Surge Current

33A

Direction

Unidirectional

Element Configuration

Single

Çap

3.56mm

Voltage Clamping

18.2V

Power Dissipation

5W

Kılıf / Paket

DO-15
