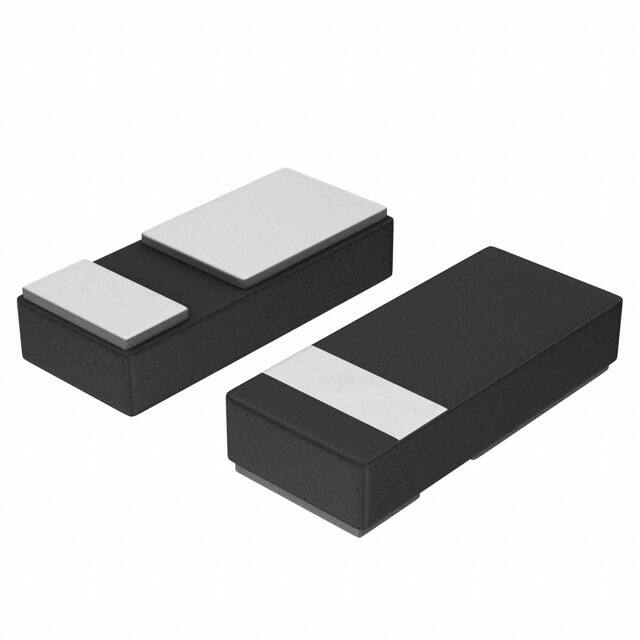

NSR10F40NXT5G

Specifications

Yüzey Montaj

YES

Parça Durumu

Active

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Current Reverse Leakage Vr

100μA @ 40V

Peak Reverse Current

100nA

Diode Element Material

SILICON

Montaj Tipi

Surface Mount

Max Repetitive Reverse Voltage Vrrm

40V

Forward Current

1A

Element Configuration

Single

Voltage Forward Vf Max If

490mV @ 1A

Min. Çalışma Sıcaklığı

-40°C

Max Power Dissipation

1.16W

Max Forward Surge Current Ifsm

18A

Temel Parça No

NSR10F40

ECCN Kodu

EAR99

Kurşunsuz

Lead Free

HTS Kodu

8541.10.00.80

Fabrika Tedarik Süresi

17 Weeks

Forward Voltage

490mV

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Average Rectified Current

1A

Kurşunsuz Kodu

yes

Pin Sayısı

2

Pin Sayısı

2

Operating Temperature Junction

150°C Max

Output Currentmax

1A

Radyasyon Dayanımı

No

Max Surge Current

18A

Diode Type

Schottky

Contact Plating

Tin

Current Average Rectified Io

1A DC

Max Reverse Voltage Dc

40V

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

2-XDFN

Terminal Sayısı

2

Peak Nonrepetitive Surge Current

18A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Pozisyonu

BOTTOM

Ambalaj

Tape & Reel (TR)
