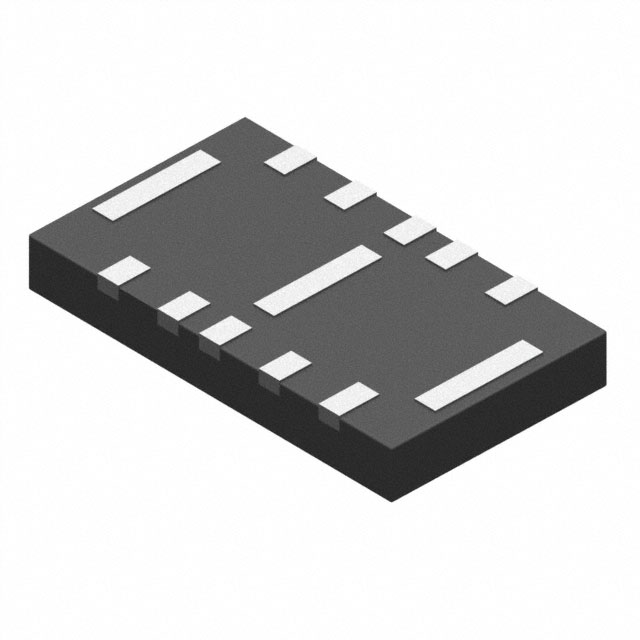

NSP8818MUTAG

Specifications

Yayın Yılı

2017

Nem Hassasiyeti (MSL)

1 (Unlimited)

Capacitance Frequency

5pF @ 1MHz Max

Voltage Breakdown Min

3.2V

Applications

Ethernet

Voltage Reverse Standoff Typ

3V Max

Terminal Sayısı

10

Clamping Voltagemax

15V

Kurşunsuz Kodu

yes

Terminal Pozisyonu

DUAL

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Breakdown Voltage V

3.5V

Voltage Clamping Max Ipp

15V

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Reverse Test Voltage

3V

Yüzey Montaj

YES

Current Peak Pulse101000s

35A 8/20μs

Ambalaj

Tape & Reel (TR)

Rep Pk Reverse Voltagemax

3V

Power Line Protection

No

Diode Element Material

SILICON

Reference Standard

IEC-61000-4-2, 4-5

Additional Feature

LOW CAPACITANCE

Çalışma Sıcaklığı

-55°C~125°C TJ

Kılıf / Paket

10-UDFN Exposed Pad

Parça Durumu

Active

Jesd30 Code

R-PDSO-N10

Fabrika Tedarik Süresi

7 Weeks

Forward Voltagemax

1.1V

Polarity

UNIDIRECTIONAL

Tip

Steering (Rail to Rail)

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

JESD-609 Kodu

e4

Reverse Currentmax

0.5μA

Unidirectional Channels

8

Number Of Elements

8
