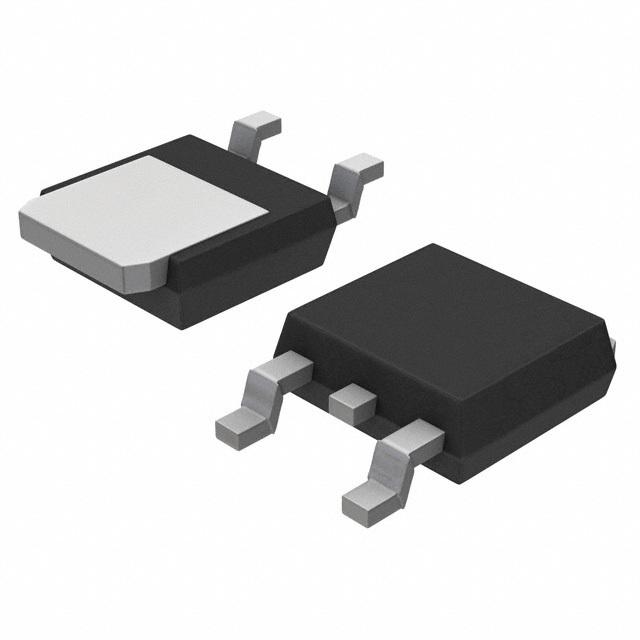

NRVUD620CTG

Specifications

Applications

ULTRA FAST RECOVERY

Min. Çalışma Sıcaklığı

-65°C

Yüzey Montaj

YES

ECCN Kodu

EAR99

Jesd30 Code

R-PSSO-G2

Peak Reverse Current

5μA

Operating Temperature Junction

-65°C~175°C

Radyasyon Dayanımı

No

Max Repetitive Reverse Voltage Vrrm

200V

Number Of Phases

1

Output Currentmax

3A

Terminal Formu

GULL WING

Montaj Tipi

Surface Mount

Terminal Kaplaması

Tin (Sn)

Peak Nonrepetitive Surge Current

50A

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

8 Weeks

Voltage Forward Vf Max If

1V @ 3A

Terminal Pozisyonu

SINGLE

Max Forward Surge Current Ifsm

50A

Additional Feature

FREE WHEELING DIODE, LOW LEAKAGE CURRENT

Tepe Reflow Sıcaklığı (°C)

260

HTS Kodu

8541.10.00.80

Pin Sayısı

3

Number Of Elements

2

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

TO-252-3, DPak (2 Leads + Tab), SC-63

Element Configuration

Common Cathode

JESD-609 Kodu

e3

Max Reverse Voltage Dc

200V

Current Reverse Leakage Vr

5μA @ 200V

Diode Configuration

1 Pair Common Cathode

Halogen Free

Halogen Free

Terminal Sayısı

2

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Forward Current

6A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Diode Element Material

SILICON

Diode Type

Standard

Yayın Yılı

2010
