Volume pricing
- 1+ pcs$0.62
- 10+ pcs$0.58
- 100+ pcs$0.55
- 500+ pcs$0.52
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Parça Durumu
- Active
- Number Of Phases
- 1
- Lifecycle Status
- ACTIVE (Last Updated: 1 week ago)
- Reverse Recovery Time
- 30ns
- Seri
- Automotive, AEC-Q101, SWITCHMODE™
- Terminal Sayısı
- 6
- Ambalaj
- Tape & Reel (TR)
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Operating Temperature Max
- 175°C
- Yüzey Montaj
- YES
- Terminal Pozisyonu
- DUAL
- Additional Feature
- FREE WHEELING DIODE
- Diode Element Material
- SILICON
- Output Currentmax
- 2A
- Yayın Yılı
- 2013
- Current Reverse Leakage Vr
- 500nA @ 200V
- Reverse Currentmax
- 0.5μA
- Kurşunsuz Kodu
- yes
- Montaj Tipi
- Surface Mount
- RoHS Durumu
- RoHS Compliant
- Jesd30 Code
- R-PDSO-F6
- Rep Pk Reverse Voltagemax
- 200V
- Diode Configuration
- 2 Independent
- JESD-609 Kodu
- e3
- Terminal Formu
- FLAT

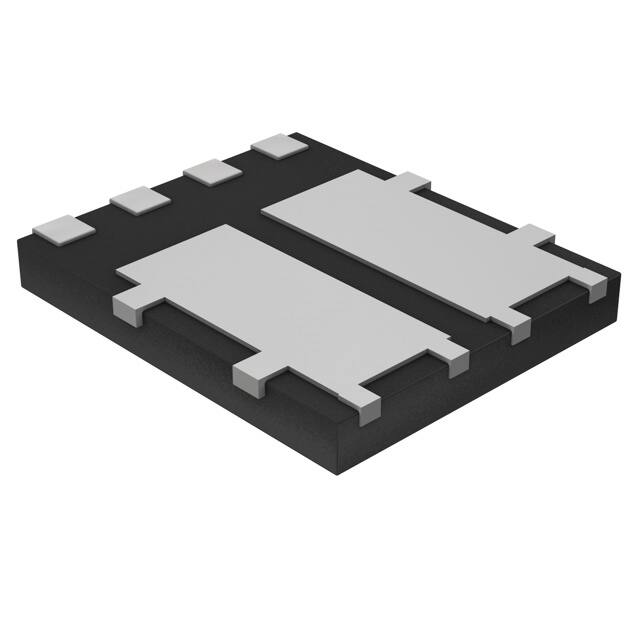

- Kılıf / Paket
- 8-PowerTDFN
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Current Average Rectified Io
- 2A
- Voltage Dc Reverse Vr Max
- 200V
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal Kaplaması
- Tin (Sn)
- Fabrika Tedarik Süresi
- 48 Weeks
- Voltage Forward Vf Max If
- 1.1V @ 6A
- Case Connection
- CATHODE
- Nonrep Pk Forward Currentmax
- 40A
- Applications
- ULTRA FAST RECOVERY POWER
- Number Of Elements
- 2
- Diode Type
- Standard
- Operating Temperature Junction
- -55°C~175°C
