NHPJ08S600G

Specifications

Peak Reverse Current

30μA

Reverse Voltage Dc

600V

Yüzey Montaj

NO

Parça Durumu

Obsolete

Current Reverse Leakage Vr

30μA @ 600V

Min. Çalışma Sıcaklığı

-55°C

Element Configuration

Single

Voltage Forward Vf Max If

3.2V @ 8A

Case Connection

ISOLATED

Montaj Tipi

Through Hole

Max Repetitive Reverse Voltage Vrrm

600V

Reverse Recovery Time

50 ns

Diode Element Material

SILICON

Forward Current

8A

Halogen Free

Halogen Free

ECCN Kodu

EAR99

HTS Kodu

8541.10.00.80

Kurşunsuz

Lead Free

Max Forward Surge Current Ifsm

80A

Additional Feature

LOW LEAKAGE CURRENT

Number Of Phases

1

Forward Voltage

3.2V

Fabrika Tedarik Süresi

13 Weeks

Pin Sayısı

2

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY POWER

Pin Sayısı

2

Kurşunsuz Kodu

yes

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Average Rectified Current

8A

Diode Type

Standard

Operating Temperature Junction

-55°C~150°C

Max Surge Current

80A

Output Currentmax

8A

Radyasyon Dayanımı

No

Terminal Kaplaması

Tin (Sn)

Max Reverse Voltage Dc

600V

RoHS Durumu

RoHS Compliant

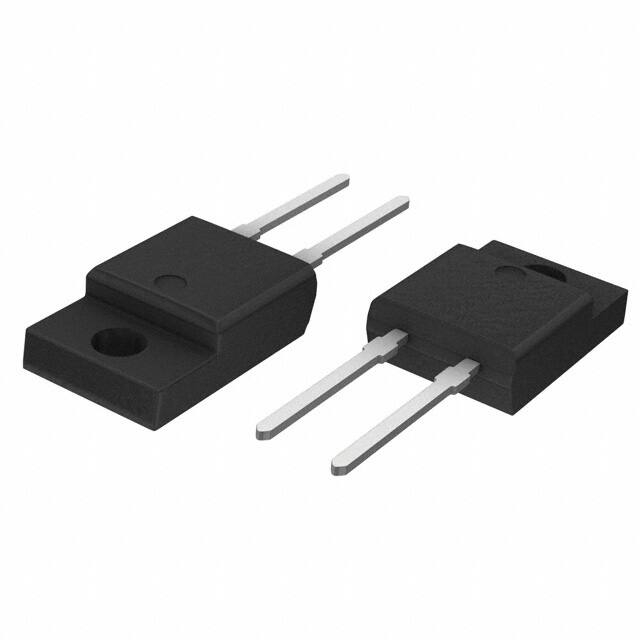

Kılıf / Paket

TO-220-2 Full Pack

Terminal Sayısı

2

Peak Nonrepetitive Surge Current

80A
