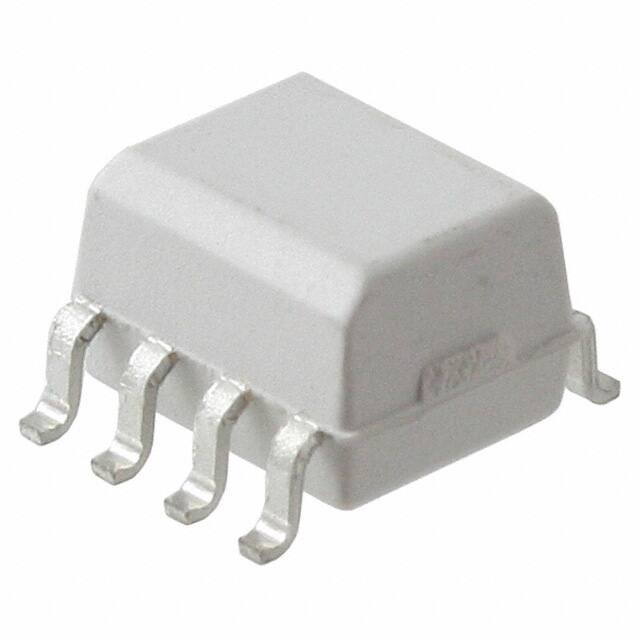

MOCD223R2M

Specifications

Montaj

Surface Mount

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-40°C~100°C

Pin Sayısı

8

Max Input Current

60mA

Turn On Turn Off Time Typ

10μs, 125μs

Giriş Tipi

DC

Reverse Voltage Dc

6V

Power Dissipation

250mW

Max Collector Current

150mA

Ambalaj

Tape & Reel (TR)

Forward Current

60mA

Collector Emitter Voltage Vceo

1V

Current Transfer Ratio

1000 %

Voltage Forward Vf Typ

1.25V

Max Output Voltage

30V

Radyasyon Dayanımı

No

Forward Voltagemax

1.3V

Rise Time

6μs

Kurşunsuz

Lead Free

Number Of Elements

2

Max Power Dissipation

250mW

Current Transfer Ratiomin

500% @ 1mA

Input Current

60mA

Reach Svhc

No SVHC

Parça Durumu

Active

Collectoremitter Saturation Voltage

1V

ECCN Kodu

EAR99

Çıkış Tipi

Darlington

Output Current Per Channel

150mA

Dark Currentmax

50nA

Fall Time Typ

45 μs

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Terminal Kaplaması

Tin (Sn)

Voltage Isolation

2500Vrms

Additional Feature

UL RECOGNIZED, VDE APPROVED

Lifecycle Status

ACTIVE (Last Updated: 8 hours ago)

Nem Hassasiyeti (MSL)

1 (Unlimited)
