Volume pricing
- 1+ pcs$0.06
- 500+ pcs$0.05
- 1000+ pcs$0.04
- 2000+ pcs$0.04
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Current Reverse Leakage Vr
- 5μA @ 75V
- Radyasyon Dayanımı
- No
- RoHS Durumu
- ROHS3 Compliant
- Output Current
- 200mA
- Pin Sayısı
- 2
- Diode Element Material
- SILICON
- Akım Değeri
- 200mA
- ECCN Kodu
- EAR99
- Terminal Formu
- GULL WING
- Genişlik
- 1.8mm
- Power Dissipation
- 400mW
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Voltage Forward Vf Max If
- 1V @ 100mA
- JESD-609 Kodu
- e3
- Reverse Recovery Time
- 4 ns
- Peak Reverse Current
- 5μA
- Kurşunsuz Kodu
- yes
- Capacitance Vr F
- 2pF @ 0V 1MHz
- Element Configuration
- Single
- Voltage Rated Dc
- 100V
- Weight
- 30mg
- Temel Parça No
- MMSD4448
- Diode Type
- Standard
- Yükseklik
- 1.18mm
- Montaj
- Surface Mount
- Terminal Sayısı
- 2
- Min. Çalışma Sıcaklığı
- -55°C
- Reach Svhc
- No SVHC
- Max Reverse Leakage Current
- 5μA
- Max Surge Current
- 2A
- Fabrika Tedarik Süresi
- 6 Weeks
- Forward Current
- 200mA
- Operating Temperature Junction
- 150°C Max
- Maks. Çalışma Sıcaklığı
- 150°C
- Max Repetitive Reverse Voltage Vrrm
- 100V
- Uzunluk
- 2.85mm
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- Max Reverse Voltage Dc
- 100V
- Average Rectified Current
- 200mA

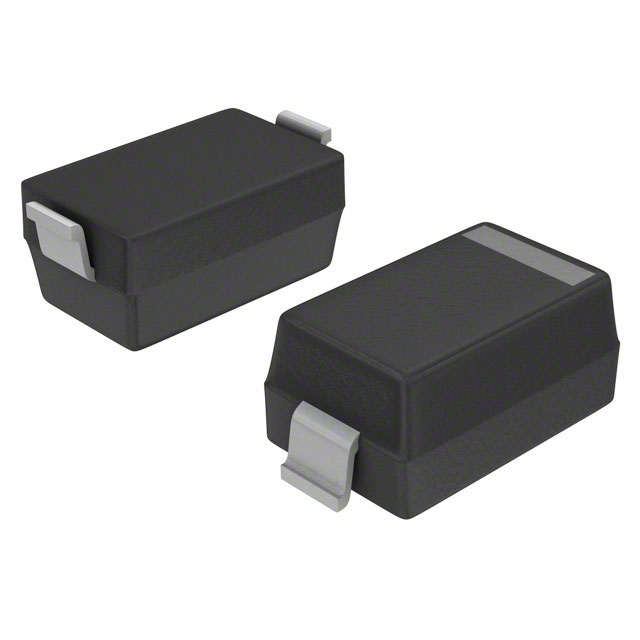

- Kılıf / Paket
- SOD-123
