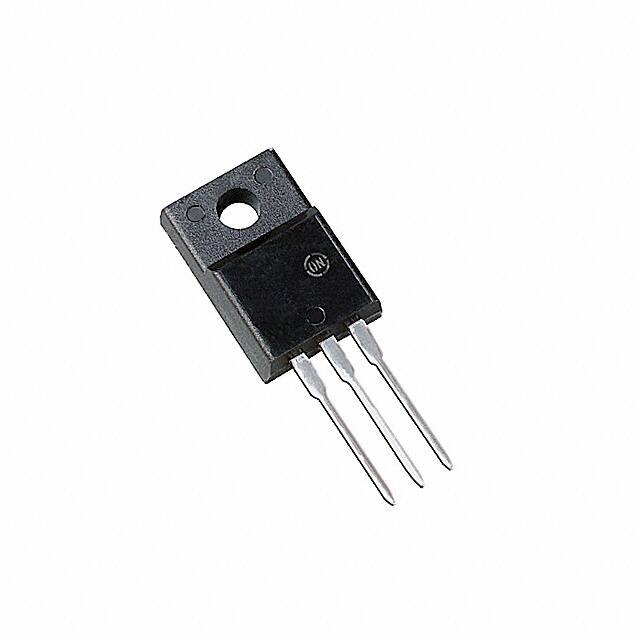

MBRF2545CTG

Specifications

Fabrika Tedarik Süresi

8 Weeks

Ambalaj

Tube

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Montaj Tipi

Through Hole

Yükseklik

16.12mm

Akım Değeri

25A

Parça Durumu

Active

Current Average Rectified Io

12.5A

Forward Current

25A

Genişlik

4.9mm

Operating Temperature Junction

-65°C~175°C

Maks. Çalışma Sıcaklığı

175°C

Kurşunsuz

Lead Free

Temel Parça No

MBRF2545CT

Tedarikçi Cihaz Paketi

TO-220FP

Current Reverse Leakage Vr

200μA @ 45V

Max Reverse Leakage Current

200μA

Diode Type

Schottky

Peak Nonrepetitive Surge Current

150A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

SWITCHMODE™

Min. Çalışma Sıcaklığı

-65°C

Voltage Dc Reverse Vr Max

45V

Forward Voltage

700mV

Lifecycle Status

ACTIVE (Last Updated: 21 hours ago)

Max Repetitive Reverse Voltage Vrrm

45V

Uzunluk

10.63mm

Max Surge Current

150A

Contact Plating

Tin

Kılıf / Paket

TO-220-3 Full Pack

Voltage Rated Dc

45V

Radyasyon Dayanımı

No

Diode Configuration

1 Pair Common Cathode

Max Reverse Voltage Dc

45V

Max Forward Surge Current Ifsm

150A

Breakdown Voltage V

45V

Element Configuration

Common Cathode

Peak Reverse Current

200μA

RoHS Durumu

ROHS3 Compliant

Voltage Forward Vf Max If

700mV @ 12.5A
