Volume pricing
- 1+ pcs$5.01
- 10+ pcs$4.73
- 100+ pcs$4.46
- 500+ pcs$4.21
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Terminal Pozisyonu
- QUAD
- Yayın Yılı
- 2013
- Function
- Driver - Fully Integrated, Control and Power Stage
- Operating Supply Voltage
- 16.5V
- Besleme Gerilimi
- 0V~5.5V
- Analog Ic Other Type
- STEPPER MOTOR CONTROLLER
- Motor Type Ac Dc
- Brushed DC
- Besleme Gerilimi
- 12V
- Montaj Tipi
- Surface Mount
- Kurşunsuz
- Lead Free
- Terminal Adımı
- 0.5mm
- Power Supplies
- 12V
- Supply Currentmax Isup
- 4.2mA
- Applications
- General Purpose

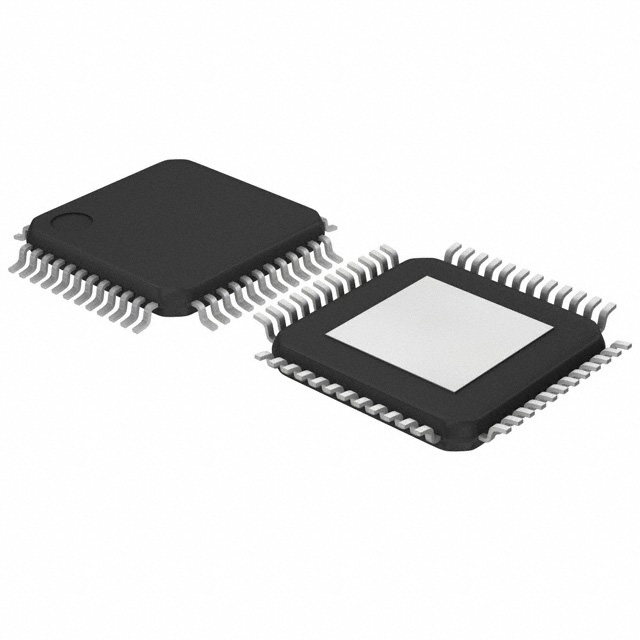

- Kılıf / Paket
- 48-TQFP Exposed Pad
- Parça Durumu
- Active
- Kurşunsuz Kodu
- yes
- Supply Voltagemin Vsup
- 4V
- Voltage Load
- 4V~16.5V
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Fabrika Tedarik Süresi
- 8 Weeks
- Çalışma Sıcaklığı
- -20°C~85°C TA
- Step Resolution
- >256 Microsteps
- Terminal Sayısı
- 48
- Jesd30 Code
- S-PQFP-G48
- Radyasyon Dayanımı
- No
- Maks. Oturma Yüksekliği
- 1.25mm
- Uzunluk
- 7mm
- RoHS Durumu
- ROHS3 Compliant
- Terminal Formu
- GULL WING
- Montaj
- Surface Mount
- Logic Function
- AND
- Genişlik
- 7mm
- Output Configuration
- Half Bridge (8)
- Interface
- Parallel
- Motor Type Stepper
- Bipolar, Unipolar
- Ambalaj
- Tape & Reel (TR)
