Specifications
- Analog Ic Other Type
- BRUSHLESS DC MOTOR CONTROLLER
- Nominal Supply Current
- 21mA
- Logic Function
- AND
- Pin Sayısı
- 48
- Terminal Formu
- GULL WING
- Function
- Driver - Fully Integrated, Control and Power Stage
- JESD-609 Kodu
- e6
- Genişlik
- 7.9mm
- Supply Voltagemin Vsup
- 9.5V
- Qualification Status
- Not Qualified
- Interface
- PWM
- Kılıf / Paket

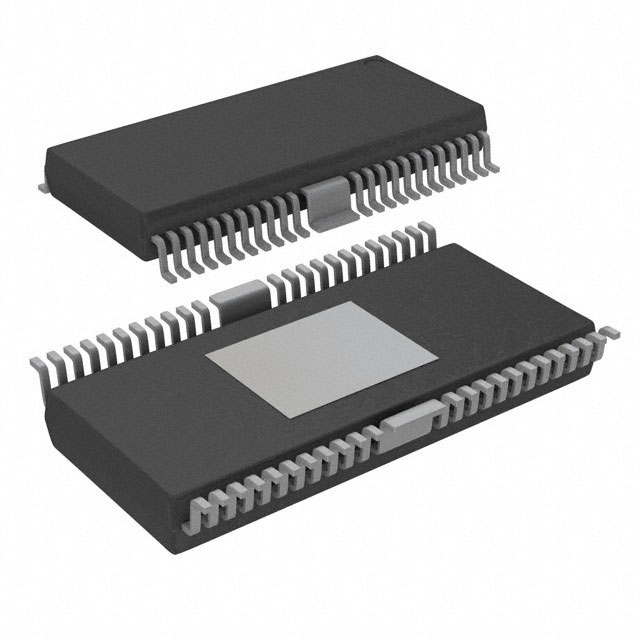

- 48-SSOP (0.311, 7.90mm) Exposed Pad + 2 Heat Tabs
- Motor Type Ac Dc
- Brushless DC (BLDC)
- Fabrika Tedarik Süresi
- 6 Weeks
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Parça Durumu
- Active
- Power Supplies
- 24V
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- Besleme Gerilimi
- 24V
- Number Of Outputs
- 1
- Çalışma Sıcaklığı
- -20°C~80°C TA
- Besleme Gerilimi
- 9.5V~28V
- Kurşunsuz
- Lead Free
- Output Configuration
- Half Bridge (3)
- Ambalaj
- Tape & Reel (TR)
- Terminal Adımı
- 0.65mm
- RoHS Durumu
- ROHS3 Compliant
- Montaj Tipi
- Surface Mount
- Terminal Pozisyonu
- DUAL
- Terminal Kaplaması
- Tin/Bismuth (Sn/Bi)
- Kurşunsuz Kodu
- yes
- Temel Parça No
- LB11870
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Yayın Yılı
- 2007
- Maks. Oturma Yüksekliği
- 2.4mm
- Supply Voltagemax Vsup
- 28V
- Power Dissipation
- 850mW
- Terminal Sayısı
- 48
- Applications
- Polygonal Mirror
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
