Specifications
- Collector Emitter Voltage Vceo
- 18V
- Yükseklik
- 1.5mm
- Nominal Supply Current
- 20mA
- Analog Ic Other Type
- ANALOG CIRCUIT
- Pin Sayısı
- 28
- Function
- Driver - Fully Integrated, Control and Power Stage
- JESD-609 Kodu
- e6
- Genişlik
- 5.6mm
- Interface
- Parallel
- Halogen Free
- Halogen Free
- Motor Type Ac Dc
- Brushless DC (BLDC)

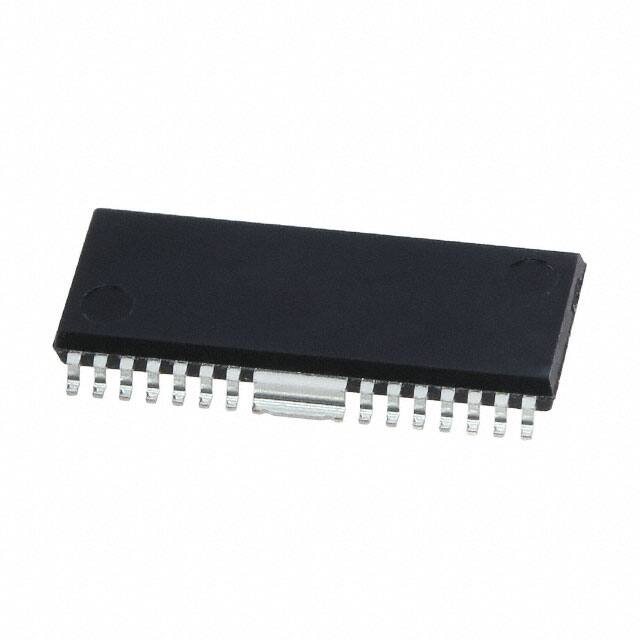

- Kılıf / Paket
- 28-LSOP (0.220, 5.60mm Width) + 2 Heat Tabs
- Parça Durumu
- Obsolete
- Power Supplies
- 5V
- Fabrika Tedarik Süresi
- 2 Weeks
- Besleme Gerilimi
- 5V
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 1 month ago)
- Number Of Outputs
- 1
- Besleme Gerilimi
- 4.5V~18V
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Output Configuration
- Half Bridge (3)
- Kurşunsuz
- Lead Free
- Ambalaj
- Tape & Reel (TR)
- Uzunluk
- 15mm
- RoHS Durumu
- RoHS Compliant
- Montaj Tipi
- Surface Mount
- Kurşunsuz Kodu
- yes
- Terminal Kaplaması
- Tin/Bismuth (Sn/Bi)
- Max Collector Current
- 1.2A
- Radyasyon Dayanımı
- No
- Temel Parça No
- LB11685
- Yayın Yılı
- 2013
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Applications
- General Purpose
- Terminal Sayısı
- 28
- Motor Type
- Brushless DC (BLDC)
- Power Dissipation
- 1.4W
- Montaj
- Surface Mount
- Voltage Load
- 4.5V~18V
