KA5H0165RTU

Specifications

JESD-609 Kodu

e3

Ambalaj

Tube

Internal Switchs

Yes

Kurşunsuz Kodu

yes

Lifecycle Status

ACTIVE, NOT REC (Last Updated: 1 day ago)

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage

Seri

FPS™

Analog Ic Other Type

SWITCHING REGULATOR

Fabrika Tedarik Süresi

4 Weeks

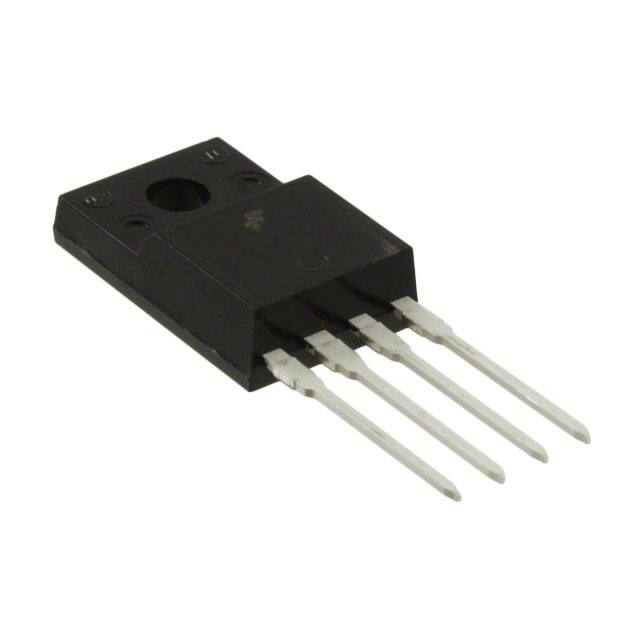

Kılıf / Paket

TO-220-4 Full Pack

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

2.829g

Min Breakdown Voltage

650V

Duty Cycle

67%

Fonksiyon Sayısı

1

Max Duty Cycle

72 %

Control Mode

CURRENT-MODE

Max Power Dissipation

40W

Yayın Yılı

2003

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Number Of Outputs

1

ECCN Kodu

EAR99

Temel Parça No

KA5H0165

Power Dissipation

40W

Voltage Supply Vccvdd

8.8V~30V

Control Technique

PULSE WIDTH MODULATION

Voltage Start Up

15V

Pin Sayısı

4

Input Voltagenom

14V

Parça Durumu

Not For New Designs

Frequency Switching

100kHz

Nominal Supply Current

7mA

Montaj Tipi

Through Hole

Terminal Pozisyonu

SINGLE

Output Current

3A

Output Voltage

5.2V

Input Voltage Max

28V

Max Supply Current

12mA

Terminal Kaplaması

Tin (Sn)
