KA1M0565RYDTU

Specifications

Internal Switchs

Yes

Çalışma Sıcaklığı

-25°C~85°C TA

RoHS Durumu

ROHS3 Compliant

Voltage Breakdown

650V

Input Voltagenom

14V

Topology

Flyback, Forward

Voltage Supply Vccvdd

10V~30V

Parça Durumu

Not For New Designs

Control Mode

CURRENT-MODE

Analog Ic Other Type

SWITCHING REGULATOR

Fabrika Tedarik Süresi

5 Weeks

Seri

FPS™

Voltage Start Up

15V

Ambalaj

Tube

Fonksiyon Sayısı

1

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage

Terminal Pozisyonu

ZIG-ZAG

Terminal Sayısı

4

Jesd30 Code

R-PZFM-T4

HTS Kodu

8542.39.00.01

ECCN Kodu

EAR99

Output Isolation

Non-Isolated

Temel Parça No

KA1M0565

Duty Cycle

77%

Input Voltage Max

30V

Yüzey Montaj

NO

Input Voltage Min

11V

Frequency Switching

67kHz

Control Technique

PULSE WIDTH MODULATION

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kılıf / Paket

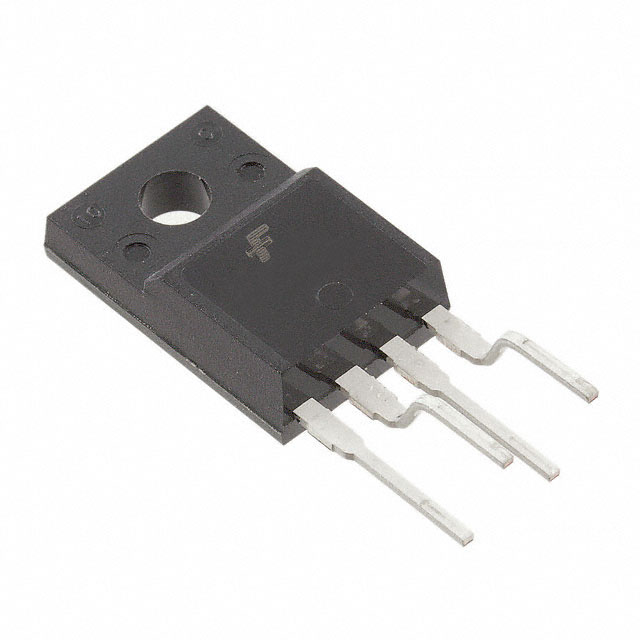

TO-220-4 Full Pack (Formed Leads)

Montaj Tipi

Through Hole

Qualification Status

Not Qualified

Output Currentmax

20A

Switcher Configuration

SINGLE
