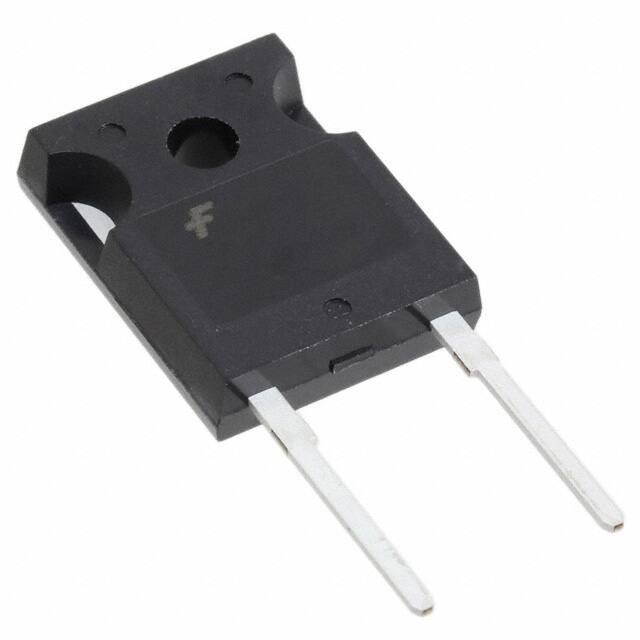

ISL9R3060G2-F085

Specifications

Kılıf / Paket

TO-247-2

Number Of Elements

1

Element Configuration

Single

Max Reverse Voltage Dc

600V

Maks. Çalışma Sıcaklığı

175°C

Parça Durumu

Active

Montaj Tipi

Through Hole

Seri

Automotive, AEC-Q101, Stealth™

Average Rectified Current

30A

Weight

6.33g

Max Forward Surge Current Ifsm

90A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min. Çalışma Sıcaklığı

-55°C

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Fabrika Tedarik Süresi

4 Weeks

Forward Current

30A

Operating Temperature Junction

-55°C~175°C

Peak Reverse Current

100μA

Recovery Time

31 ns

REACH Uyumluluk Kodu

not_compliant

Voltage Forward Vf Max If

2.4V @ 30A

Reverse Recovery Time

45 ns

Forward Voltage

2.4V

Reverse Voltage Dc

600V

Montaj

Through Hole

Diode Type

Standard

Max Repetitive Reverse Voltage Vrrm

600V

Current Reverse Leakage Vr

100μA @ 600V

Kurşunsuz Kodu

yes

Max Surge Current

90A

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tube
