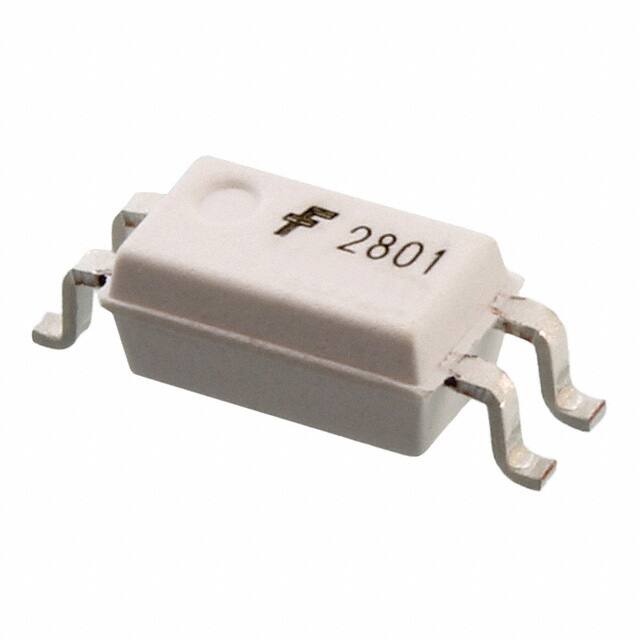

HMHA281

Specifications

Output Voltage

80V

Montaj

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Forward Vf Typ

1.3V Max

Max Collector Current

50mA

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

5 Weeks

Reverse Breakdown Voltage

6V

Additional Feature

UL RECOGNIZED

Uzunluk

2.69mm

Output Current Per Channel

50mA

Current Transfer Ratiomin

50% @ 5mA

Max Power Dissipation

150mW

Çıkış Tipi

Transistor

Voltage Isolation

3750Vrms

Input Current

10mA

Number Of Elements

1

Weight

120mg

Max Input Current

50mA

Kılıf / Paket

4-SOIC (0.173, 4.40mm Width)

RoHS Durumu

ROHS3 Compliant

Fall Time Typ

3 μs

Forward Current

50mA

Current Transfer Ratio Max

600% @ 5mA

Configuration

SINGLE

Collectoremitter Saturation Voltage

400mV

Collector Emitter Voltage Vceo

400mV

Rise Fall Time Typ

3μs 3μs

Montaj Tipi

Surface Mount

Ambalaj

Tube

Parça Durumu

Active

Radyasyon Dayanımı

No

Kurşunsuz

Lead Free

Yükseklik

2.19mm

Yayın Yılı

2001

Power Dissipation

150mW

Giriş Tipi

DC

Rise Time

3μs

Çalışma Sıcaklığı

-55°C~100°C
