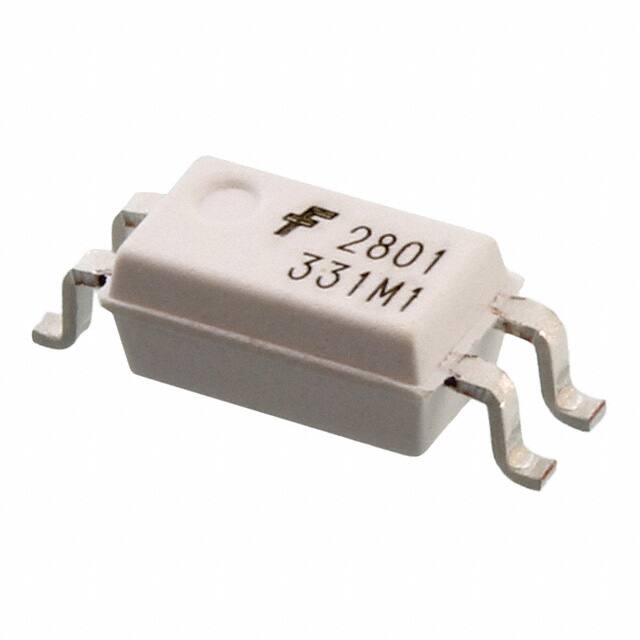

HMHA2801

Specifications

Output Voltage

80V

Voltage Forward Vf Typ

1.3V Max

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Surface Mount

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Max Collector Current

50mA

Reverse Breakdown Voltage

6V

Fabrika Tedarik Süresi

7 Weeks

Output Current Per Channel

50mA

Current Transfer Ratiomin

80% @ 5mA

Additional Feature

UL RECOGNIZED

Uzunluk

2.69mm

Reverse Voltage Dc

6V

Input Current

10mA

Voltage Isolation

3750Vrms

Çıkış Tipi

Transistor

Max Power Dissipation

150mW

Number Of Elements

1

Kılıf / Paket

4-SOIC (0.173, 4.40mm Width)

Weight

120mg

Max Input Current

50mA

RoHS Durumu

ROHS3 Compliant

Contact Plating

Tin

Forward Current

50mA

Fall Time Typ

3 μs

Montaj Tipi

Surface Mount

Rise Fall Time Typ

3μs 3μs

Collector Emitter Voltage Vceo

300mV

Collectoremitter Saturation Voltage

300mV

Configuration

SINGLE

Current Transfer Ratio Max

600% @ 5mA

Parça Durumu

Active

Ambalaj

Tube

Power Dissipation

150mW

Yayın Yılı

2001

Radyasyon Dayanımı

No

Kurşunsuz

Lead Free

Yükseklik

2.19mm

Giriş Tipi

DC
