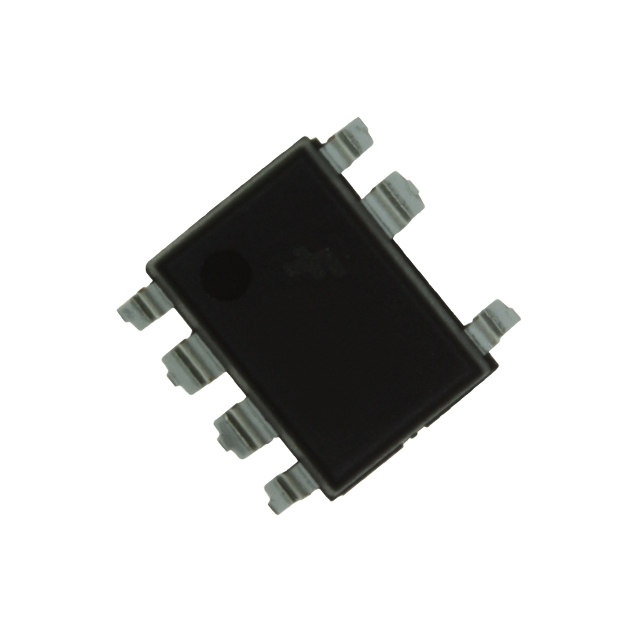

FSL4110LRLX

Specifications

Çalışma Sıcaklığı

-40°C~125°C TJ

Internal Switchs

Yes

Analog Ic Other Type

SWITCHING CONTROLLER

Montaj

Surface Mount

Max Power Dissipation

9W

Voltage Breakdown

1000V

Tepe Reflow Sıcaklığı (°C)

250

Frequency Switching

50kHz

Duty Cycle

67%

Output Isolation

Isolated

Montaj Tipi

Surface Mount

Voltage Start Up

12V

RoHS Durumu

ROHS3 Compliant

Max Duty Cycle

73 %

Parça Durumu

Active

Max Supply Current

500μA

JESD-609 Kodu

e3

Ambalaj

Tape & Reel (TR)

Yayın Yılı

2015

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage

Number Of Outputs

1

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

3 (168 Hours)

Min Breakdown Voltage

1kV

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Topology

Flyback

Nominal Supply Current

300μA

Pin Sayısı

7

Weight

776.7mg

ECCN Kodu

EAR99

Kılıf / Paket

8-SMD (7 Leads), Gull Wing

Terminal Kaplaması

Tin (Sn)

Fabrika Tedarik Süresi

6 Weeks

Voltage Supply Vccvdd

8V~27V
