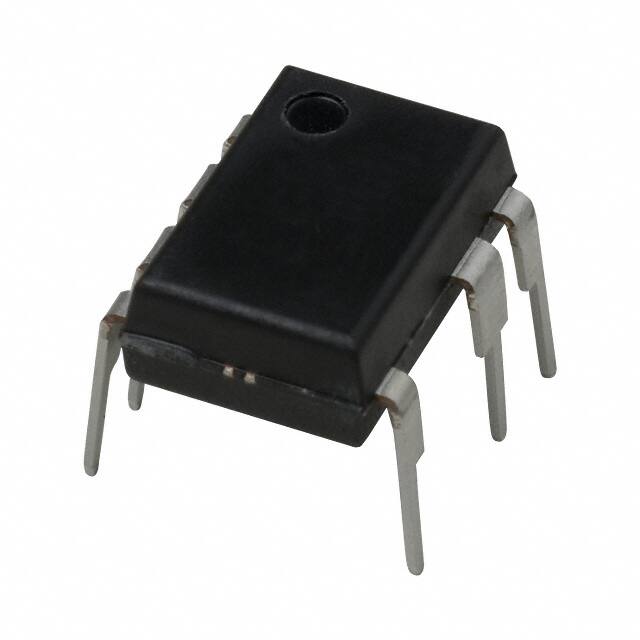

FSL336LRDN

Specifications

Output Isolation

Non-Isolated

Montaj Tipi

Through Hole

Voltage Start Up

8V

RoHS Durumu

ROHS3 Compliant

Max Duty Cycle

77 %

Parça Durumu

Last Time Buy

Max Supply Current

350μA

Çalışma Sıcaklığı

-40°C~125°C TJ

Analog Ic Other Type

SWITCHING CONTROLLER

Internal Switchs

Yes

Montaj

Surface Mount

Frequency Switching

50kHz

Control Features

EN, Soft Start

Weight

501.2mg

Kılıf / Paket

8-DIP (0.300, 7.62mm), 7 Leads

Fabrika Tedarik Süresi

12 Weeks

Voltage Supply Vccvdd

26V

Max Output Power

20W

Ambalaj

Tube

Yayın Yılı

2015

Fault Protection

Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min Breakdown Voltage

650V

Topology

Buck, Buck-Boost, Flyback
