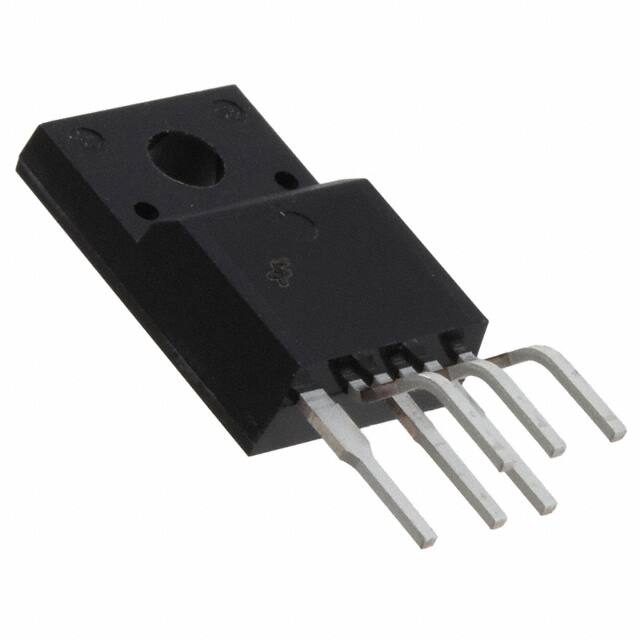

FSGM0465RBWDTU

Specifications

Fault Protection

Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit

Min Breakdown Voltage

650V

Pin Sayısı

6

Direnç

2.6Ohm

Voltage Supply Vccvdd

7.5V~26V

Power Dissipation

45W

Çalışma Sıcaklığı

-40°C~125°C TJ

Parça Durumu

Obsolete

Weight

1.6g

Montaj

Through Hole

Terminal Pozisyonu

ZIG-ZAG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fonksiyon Sayısı

1

Output Isolation

Isolated

Ambalaj

Tube

Min Input Voltage

26V

Turn On Delay Time

13 ns

Terminal Sayısı

6

Output Current

2.45A

Analog Ic Other Type

SWITCHING CONTROLLER

Montaj Tipi

Surface Mount

Internal Switchs

Yes

Turn Off Delay Time

30 ns

Nominal Supply Current

2.5mA

Frequency Switching

66kHz

Control Mode

CURRENT-MODE

Topology

Flyback

Max Supply Current

2mA

Control Technique

PULSE WIDTH MODULATION

Seri

FPS™

Max Power Dissipation

70W

Duty Cycle

70%

Voltage Start Up

12V

Temel Parça No

FSGM0465R

RoHS Durumu

RoHS Compliant

Kılıf / Paket

TO-220-6 Full Pack, Formed Leads

Max Duty Cycle

75 %

Number Of Outputs

1

Input Voltagenom

14V
