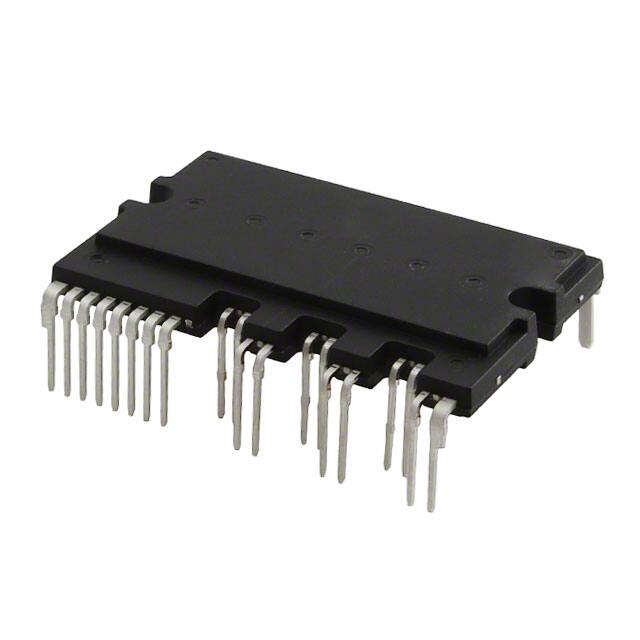

Specifications
- Seri
- Motion SPM® 3
- Turn On Delay Time
- 750 ns
- Turn Off Delay Time
- 550 ns
- Kılıf / Paket
- 27-PowerDIP Module (1.205, 30.60mm)
- Fonksiyon Sayısı
- 1
- Pin Sayısı
- 27
- Collectoremitter Saturation Voltage
- 2.2V
- Besleme Gerilimi
- 15V
- Min. Çalışma Sıcaklığı
- -40°C
- Output Currentmax
- 30A
- Configuration
- 3 Phase
- Weight
- 21.978g
- RoHS Durumu
- RoHS Compliant
- Montaj
- Through Hole
- HTS Kodu
- 8541.29.00.95
- Radyasyon Dayanımı
- No
- Kurşunsuz
- Lead Free
- Voltage Isolation
- 2500Vrms
- Terminal Sayısı
- 27
- Temperature Grade
- AUTOMOTIVE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Kurşunsuz Kodu
- yes
- Yükseklik
- 5.5mm
- Genişlik
- 26.8mm
- Supply Voltagemax Vsup
- 16.5V
- Temel Parça No
- FSBF15CH60
- Max Power Dissipation
- 25W
- Montaj Tipi
- Through Hole
- Yayın Yılı
- 2007
- Collector Emitter Voltage Vceo
- 2.2V
- Min Breakdown Voltage
- 600V
- Supply Voltagemin Vsup
- 13.5V
- Tip
- IGBT
- Maks. Çalışma Sıcaklığı
- 150°C
- JESD-609 Kodu
- e3
- Terminal Pozisyonu
- DUAL
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 2 days ago)
- Parça Durumu
- Obsolete
- Terminal Kaplaması
- Tin (Sn)
- Max Current Rating
- 15A
