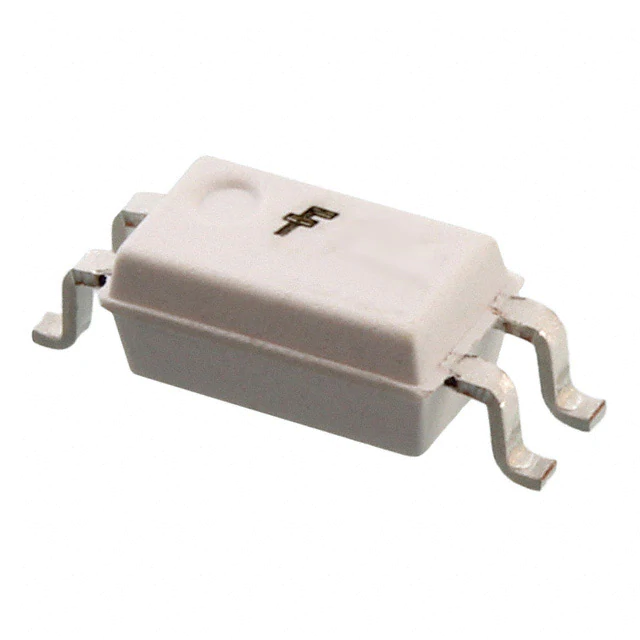

FODM8801A

Specifications

Radyasyon Dayanımı

No

Output Voltage

75V

Max Output Voltage

75V

Max Input Current

20mA

Current Transfer Ratiomin

80% @ 1mA

Pin Sayısı

4

Giriş Tipi

DC

Çalışma Sıcaklığı

-40°C~125°C

Current Transfer Ratio Max

160% @ 1mA

Collectoremitter Saturation Voltage

400mV

Number Of Elements

1

Terminal Kaplaması

Nickel/Palladium/Gold (Ni/Pd/Au)

Çıkış Tipi

Transistor

Forward Current

20mA

Reverse Breakdown Voltage

6V

Kurşunsuz Kodu

yes

Turn On Turn Off Time Typ

6μs, 6μs

Additional Feature

UL RECOGNIZED

Rise Fall Time Typ

5μs 5.5μs

Ambalaj

Tube

Configuration

SINGLE

Voltage Isolation

3750Vrms

Output Current Per Channel

30mA

ECCN Kodu

EAR99

Kılıf / Paket

4-SOIC (0.173, 4.40mm Width)

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Input Current

20mA

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Max Power Dissipation

300mW

Kurşunsuz

Lead Free

Voltage Forward Vf Typ

1.35V

Response Timemax

0.00002s

Max Collector Current

30mA

Power Dissipation

150mW

Yayın Yılı

2015

Number Of Channels

1

Weight

120mg

Seri

OptoHit™
