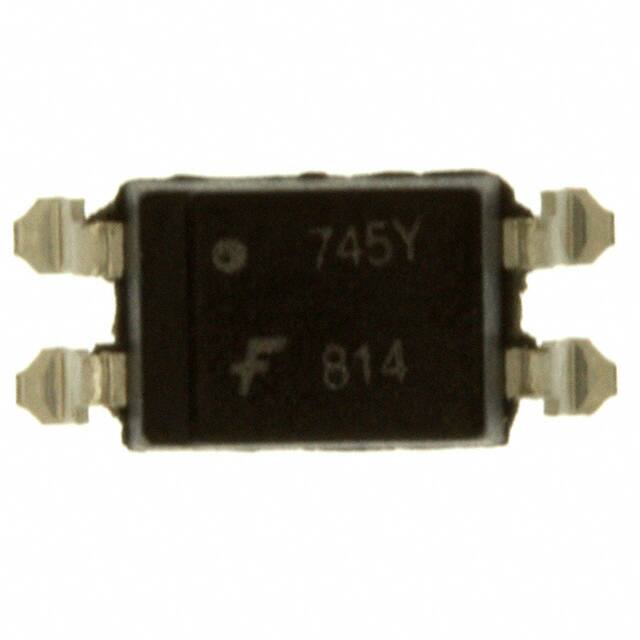

FOD814S

Specifications

Output Current Per Channel

50mA

Number Of Elements

1

Rise Fall Time Typ

4μs 3μs

Collector Emitter Voltage Vceo

200mV

Pin Sayısı

4

Current Transfer Ratiomin

20% @ 1mA

JESD-609 Kodu

e3

Output Voltage

70V

Input Current

50mA

Fabrika Tedarik Süresi

9 Weeks

Parça Durumu

Active

Kılıf / Paket

4-SMD, Gull Wing

Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Çalışma Sıcaklığı

-55°C~105°C

Reach Svhc

No SVHC

Additional Feature

UL APPROVED

Voltage Forward Vf Typ

1.2V

Kurşunsuz

Lead Free

Giriş Tipi

AC, DC

Forward Current

50mA

Ambalaj

Tube

Max Output Voltage

70V

Max Input Current

50mA

ECCN Kodu

EAR99

Current Transfer Ratio Max

300% @ 1mA

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Surface Mount

Configuration

SINGLE

Fall Time Typ

18 μs

Rise Time

18μs

Max Collector Current

50mA

Voltage Isolation

5000Vrms

Çıkış Tipi

Transistor

Kurşunsuz Kodu

yes

Terminal Kaplaması

Tin (Sn)

Max Power Dissipation

200mW

Collectoremitter Saturation Voltage

200mV

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

0g

Yayın Yılı

2002
