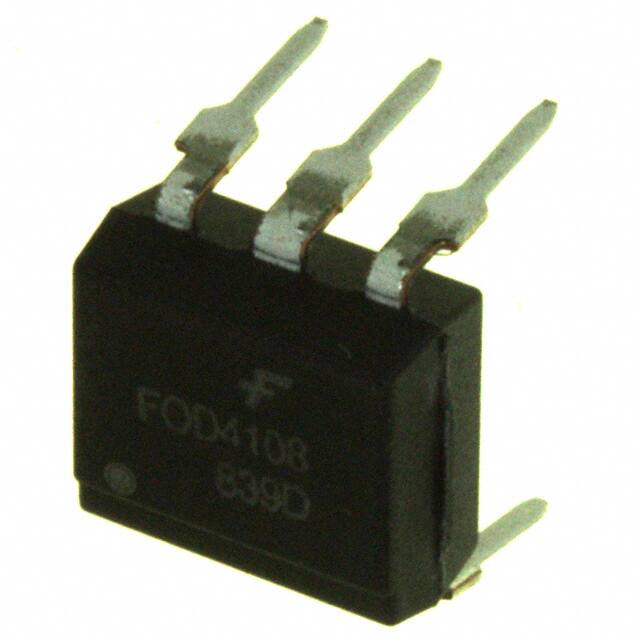

FOD4108

Specifications

ECCN Kodu

EAR99

Input Current

20mA

Max Input Voltage

1.5V

Radyasyon Dayanımı

No

Zerocrossing Circuit

Yes

Rise Time

60μs

Currentholdih

500μA

Max Input Current

30mA

Configuration

SINGLE

Montaj Tipi

Through Hole

Nominal Input Voltage

1.25V

Additional Feature

UL RECOGNIZED

Input Trigger Currentnom

0.65mA

Output Current Per Channel

300mA

Pin Sayısı

6

Max Power Dissipation

500mW

Number Of Elements

1

Reverse Breakdown Voltage

6V

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

6-DIP (0.300, 7.62mm)

Onstate Voltagemax

3V

Static Dvdt Min

10kV/μs

Hold Current

200μA

Forward Current

30mA

Ambalaj

Tube

Yayın Yılı

2009

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~100°C

Turn On Delay Time

60 μs

Reach Svhc

No SVHC

Number Of Channels

1

Terminal Kaplaması

Tin (Sn)

Montaj

Through Hole

Onstate Currentmax

0.07A

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

7 Weeks

Onay Kuruluşu

CSA, UL

Peak Surge Current

3A

Max Output Current

300mA

Voltageoff State

800V
