Volume pricing
- 1+ pcs$7.22
- 10+ pcs$6.81
- 100+ pcs$6.42
- 500+ pcs$6.06
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- HTS Kodu
- 8541.29.00.95
- Ambalaj
- Tube
- Test Conditions
- 400V, 75A, 3 Ω, 15V
- Collectoremitter Saturation Voltage
- 1.9V
- Additional Feature
- LOW CONDUCTION LOSS
- Terminal Kaplaması
- Tin (Sn)
- Number Of Elements
- 1
- Çalışma Sıcaklığı
- -55°C~175°C TJ
- Vceon Max Vge Ic
- 2.5V @ 15V, 75A
- Max Collector Current
- 150A
- Genişlik
- 4.82mm
- Igbt Type
- Field Stop
- Gate Charge
- 248nC
- Reach Svhc
- No SVHC
- Collectoremitter Breakdown Voltage
- 600V
- Td Onoff25c
- 24ns/136ns
- Reverse Recovery Time
- 55 ns
- Power Max
- 750W
- Max Power Dissipation
- 750W

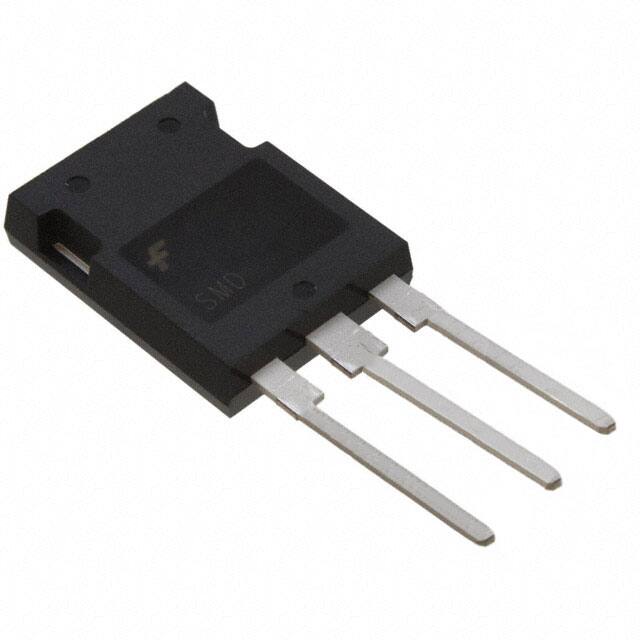

- Kılıf / Paket
- TO-247-3 Variant
- Turn On Time
- 76 ns
- Radyasyon Dayanımı
- No
- Transistor Application
- POWER CONTROL
- Element Configuration
- Single
- Uzunluk
- 15.87mm
- Current Collector Pulsed Icm
- 225A
- Gateemitter Voltagemax
- 20V
- Gateemitter Thr Voltagemax
- 6.5V
- Pin Sayısı
- 3
- Terminal Sayısı
- 3
- Lifecycle Status
- ACTIVE (Last Updated: 8 hours ago)
- Montaj
- Through Hole
- Polaritychannel Type
- N-CHANNEL
- Kurşunsuz Kodu
- yes
- JESD-609 Kodu
- e3
- Fall Timemax Tf
- 29ns
- Montaj Tipi
- Through Hole
- Giriş Tipi
- Standard
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 6 Weeks
