Volume pricing
- 1+ pcs$14.77
- 10+ pcs$13.94
- 100+ pcs$13.15
- 500+ pcs$12.40
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Giriş Tipi
- Standard
- Fabrika Tedarik Süresi
- 4 Weeks
- Switching Energy
- 6.8μJ (on), 3.5μJ (off)
- REACH Uyumluluk Kodu
- not_compliant
- RoHS Durumu
- ROHS3 Compliant
- Yayın Yılı
- 2016
- Parça Durumu
- Active
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Weight
- 7.629g
- Collector Emitter Voltage Vceo
- 1.85V
- Current Collector Pulsed Icm
- 378A
- Lifecycle Status
- ACTIVE (Last Updated: 1 week ago)
- Çalışma Sıcaklığı
- -55°C~175°C TJ
- Ambalaj
- Tube
- Test Conditions
- 400V, 120A, 5 Ω, 15V
- Max Collector Current
- 240A
- Vceon Max Vge Ic
- 1.85V @ 15V, 120A
- Montaj
- Through Hole
- Igbt Type
- Trench Field Stop
- Kurşunsuz Kodu
- yes
- Max Power Dissipation
- 882W

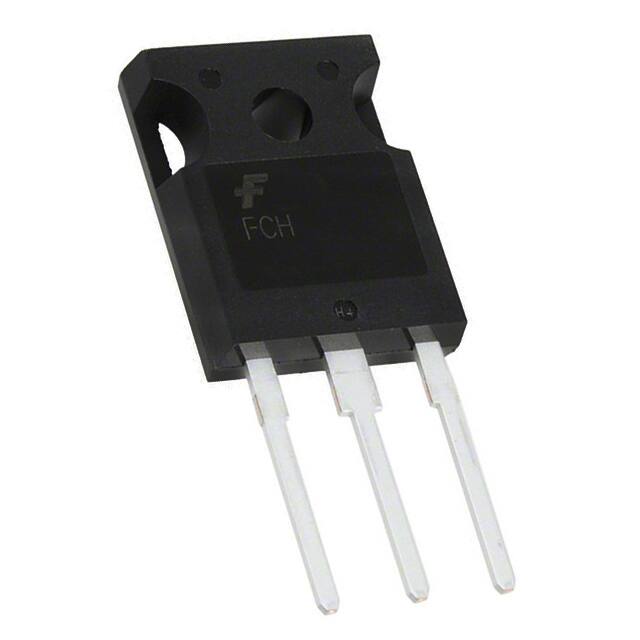

- Kılıf / Paket
- TO-247-3
- Power Max
- 882W
- Gate Charge
- 162nC
- Seri
- Automotive, AEC-Q101
- Collectoremitter Breakdown Voltage
- 650V
- Reverse Recovery Time
- 123 ns
- Montaj Tipi
- Through Hole
- Td Onoff25c
- 53ns/102ns
