Specifications
- Lifecycle Status
- ACTIVE (Last Updated: 5 days ago)
- Td Onoff25c
- 55ns/189ns
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- JESD-609 Kodu
- e3
- Weight
- 6.289g
- Kurşunsuz Kodu
- yes
- Collectoremitter Breakdown Voltage
- 650V
- Switching Energy
- 1.06mJ (on), 1.56mJ (off)
- Collectoremitter Saturation Voltage
- 1.6V
- Gate Charge
- 126nC
- Reverse Recovery Time
- 76 ns
- Parça Durumu
- Active
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Igbt Type
- Field Stop
- Giriş Tipi
- Standard
- Reach Svhc
- No SVHC
- Power Max
- 455W
- Fabrika Tedarik Süresi
- 4 Weeks
- Ambalaj
- Tube
- Montaj Tipi
- Through Hole
- Pin Sayısı
- 4
- Max Collector Current
- 150A
- RoHS Durumu
- ROHS3 Compliant
- Current Collector Pulsed Icm
- 300A
- Test Conditions
- 400V, 75A, 15 Ω, 15V
- Vceon Max Vge Ic
- 2.1V @ 15V, 75A
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Montaj
- Through Hole
- ECCN Kodu
- EAR99
- Kılıf / Paket

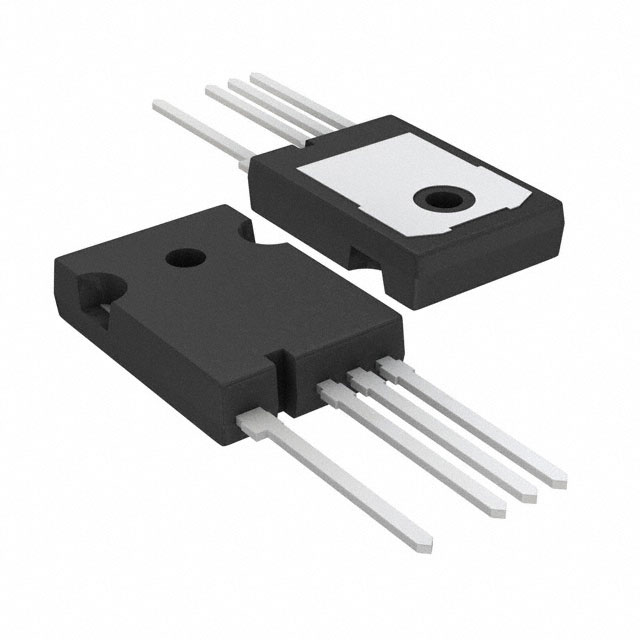

- TO-247-4
- Max Power Dissipation
- 455W
- Collector Emitter Voltage Vceo
- 2.1V
- Çalışma Sıcaklığı
- -55°C~175°C TJ
- Terminal Kaplaması
- Tin (Sn)
