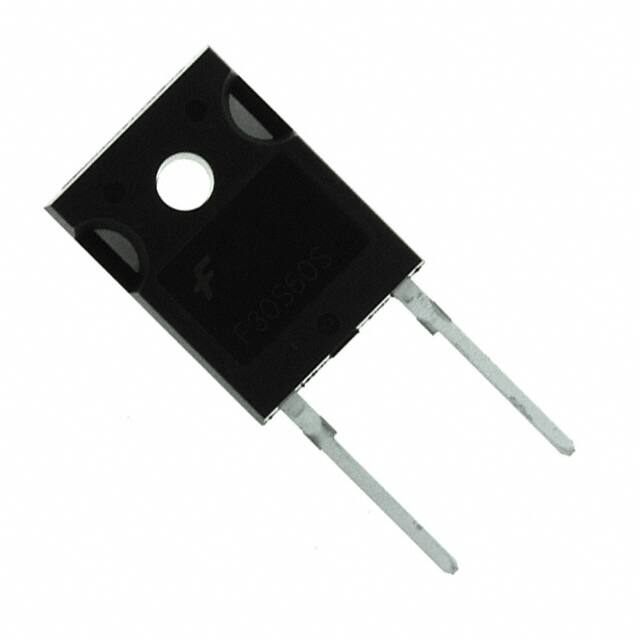

FFH30S60STU

Specifications

Peak Nonrepetitive Surge Current

300A

Max Forward Surge Current Ifsm

300A

Fabrika Tedarik Süresi

4 Weeks

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Average Rectified Current

30A

Number Of Elements

1

Diode Type

Standard

HTS Kodu

8541.10.00.80

Min. Çalışma Sıcaklığı

-65°C

Element Configuration

Single

Radyasyon Dayanımı

No

Montaj

Through Hole

Max Reverse Voltage Dc

600V

Diode Element Material

SILICON

ECCN Kodu

EAR99

Reverse Recovery Time

40 ns

Montaj Tipi

Through Hole

RoHS Durumu

ROHS3 Compliant

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Parça Durumu

Active

Kılıf / Paket

TO-247-2

Operating Temperature Junction

-65°C~150°C

Additional Feature

HIGH RELIABILITY, FREE WHEELING DIODE

Pin Sayısı

2

Reverse Voltage

600V

Voltage Forward Vf Max If

2.6V @ 30A

Max Repetitive Reverse Voltage Vrrm

600V

Yükseklik

21mm

Forward Voltage

2.6V

Current Reverse Leakage Vr

100μA @ 600V

Maks. Çalışma Sıcaklığı

150°C

Genişlik

5.03mm

JESD-609 Kodu

e3

Number Of Phases

1

Kurşunsuz Kodu

yes

Terminal Kaplaması

Tin (Sn)

Terminal Sayısı

2

Applications

HYPERFAST SOFT RECOVERY

Nem Hassasiyeti (MSL)

1 (Unlimited)
