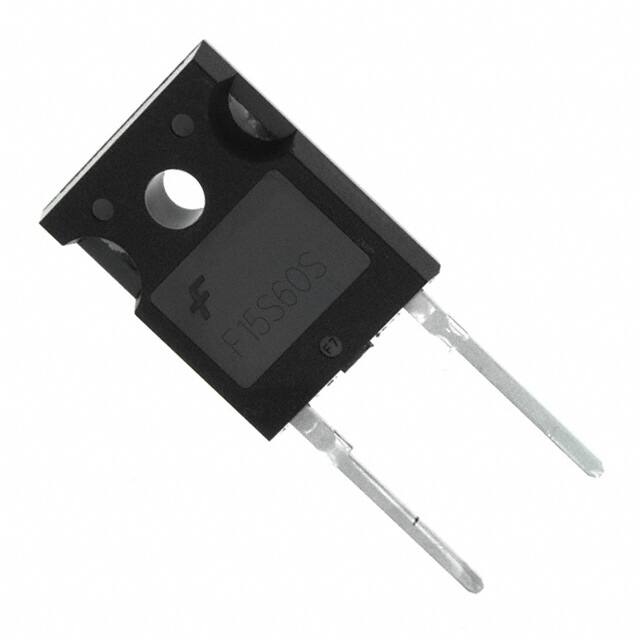

FFH15S60STU

Specifications

Peak Nonrepetitive Surge Current

150A

Max Forward Surge Current Ifsm

150A

Parça Durumu

Obsolete

Kılıf / Paket

TO-247-2

Operating Temperature Junction

-65°C~150°C

Reach Svhc

No SVHC

Average Rectified Current

15A

Pin Sayısı

2

Reverse Voltage

600V

Voltage Forward Vf Max If

2.6V @ 15A

Tedarikçi Cihaz Paketi

TO-247-2

Max Repetitive Reverse Voltage Vrrm

600V

Forward Voltage

2.6V

Current Reverse Leakage Vr

100μA @ 600V

Diode Type

Standard

Min. Çalışma Sıcaklığı

-65°C

Maks. Çalışma Sıcaklığı

150°C

Element Configuration

Single

Radyasyon Dayanımı

No

Montaj

Through Hole

Max Reverse Voltage Dc

600V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2007

Weight

6.33g

Recovery Time

23 ns

Voltage Dc Reverse Vr Max

600V

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Forward Current

15A

Ambalaj

Tube

Reverse Recovery Time

35 ns

Montaj Tipi

Through Hole

Peak Reverse Current

100μA

Max Surge Current

150A

Current Average Rectified Io

15A

RoHS Durumu

RoHS Compliant
