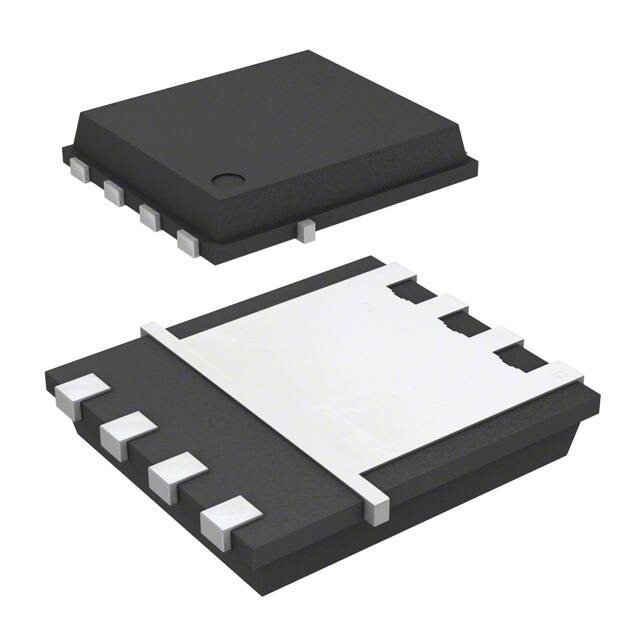

FDMS7600AS

Specifications

Drainsource On Resistancemax

0.0075Ohm

Radyasyon Dayanımı

No

Turn Off Delay Time

45 ns

Gate To Source Voltage Vgs

20V

Number Of Elements

2

Terminal Kaplaması

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Current Continuous Drain Id25

12A 22A

Input Capacitance Ciss Max Vds

1750pF @ 15V

Kılıf / Paket

8-PowerWDFN

Ambalaj

Tape & Reel (TR)

Continuous Drain Current Id

40A

Gate Charge Qg Max Vgs

28nC @ 10V

RoHS Durumu

ROHS3 Compliant

Transistor Element Material

SILICON

Nominal Vgs

1 V

Vgsth Max Id

3V @ 250μA

Drain To Source Breakdown Voltage

30V

Power Dissipation

1W

Max Power Dissipation

1W

JESD-609 Kodu

e4

Montaj Tipi

Surface Mount

Reach Svhc

No SVHC

Weight

211mg

Seri

PowerTrench®

Fall Time Typ

5.2 ns

Pin Sayısı

8

Terminal Formu

FLAT

Rds On Max Id Vgs

7.5m Ω @ 12A, 10V

Jesd30 Code

R-PDSO-F6

Transistor Application

SWITCHING

Çalışma Sıcaklığı

-55°C~150°C TJ

Threshold Voltage

1V

Terminal Sayısı

6

Kurşunsuz Kodu

yes

Operating Mode

ENHANCEMENT MODE

Case Connection

SOURCE

Fet Feature

Logic Level Gate

ECCN Kodu

EAR99

Genişlik

6mm

Parça Durumu

Active
