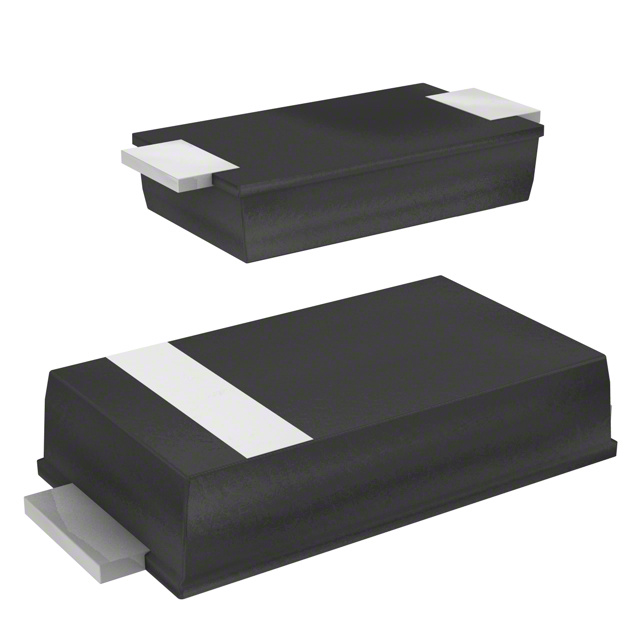

ES1JAF

Specifications

Max Reverse Voltage Dc

600V

Max Forward Surge Current Ifsm

30A

Number Of Elements

1

Element Configuration

Single

RoHS Durumu

ROHS3 Compliant

Voltage Forward Vf Max If

1.7V @ 1A

Average Rectified Current

1A

Jesd30 Code

R-PDSO-F2

Yayın Yılı

2017

Terminal Kaplaması

Tin (Sn)

Max Repetitive Reverse Voltage Vrrm

600V

ECCN Kodu

EAR99

Montaj

Surface Mount

HTS Kodu

8541.10.00.80

Kılıf / Paket

DO-214AD, SMAF

Tepe Reflow Sıcaklığı (°C)

260

Reverse Currentmax

1μA

Current Reverse Leakage Vr

1μA @ 600V

Diode Type

Standard

JESD-609 Kodu

e3

Kurşunsuz Kodu

yes

Weight

330mg

Nem Hassasiyeti (MSL)

1 (Unlimited)

Min. Çalışma Sıcaklığı

-55°C

Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Diode Element Material

SILICON

Output Currentmax

1A

Terminal Sayısı

2

Fabrika Tedarik Süresi

17 Weeks

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Capacitance Vr F

15pF @ 4V 1MHz

Terminal Pozisyonu

DUAL

Reverse Recovery Time

34 ns

Parça Durumu

Active

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Forward Current

1A

Applications

ULTRA FAST RECOVERY

Operating Temperature Junction

-55°C~150°C
