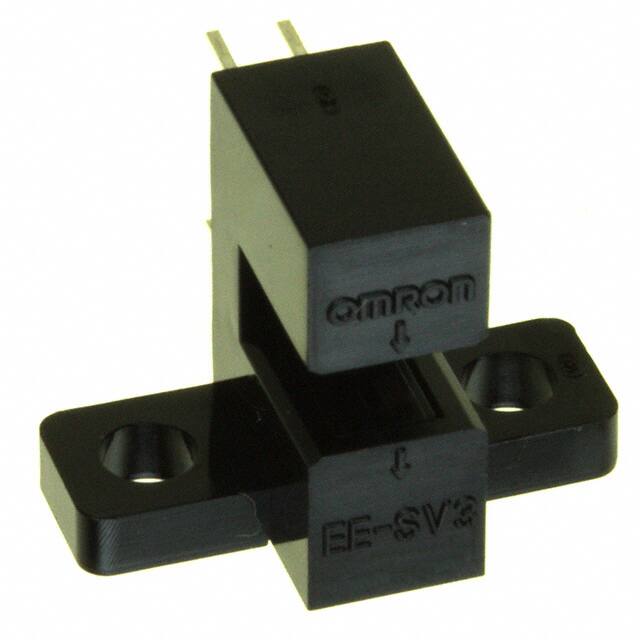

EE-SV3-B

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fall Time Typ

4 μs

Response Time

4μs, 4μs

Kurşunsuz Kodu

yes

Ambalaj

Bulk

Onstate Collector Currentnom

0.5mA

Kılıf / Paket

PCB Mount

Reach Svhc

Unknown

Fabrika Tedarik Süresi

8 Weeks

Forward Current

50mA

Input Current

30mA

Slot Widthnom

3.4mm

Collectoremitter Breakdown Voltage

30V

Montaj

PCB, Through Hole

Yayın Yılı

2002

RoHS Durumu

RoHS Compliant

Fonksiyon Sayısı

1

Pin Sayısı

4

Collector Emitter Voltage Vceo

30V

Dark Currentmax

200nA

Terminal

Solder

Max Collector Current

20mA

Parça Durumu

Active

Output Voltage

30V

Power Dissipation

100mW

Rise Time

4μs

Çalışma Sıcaklığı

-25°C~85°C

Forward Voltage

1.2V

Kurşunsuz

Lead Free

Sensing Method

Through-Beam

Reverse Voltage Dc

4V

Number Of Channels

1

Montaj Tipi

Through Hole

Additional Feature

HIGH SENSITIVITY

Max Input Current

30mA

Tip

Unamplified

Algılama Mesafesi

0.134 (3.4mm)

Output Configuration

Phototransistor
