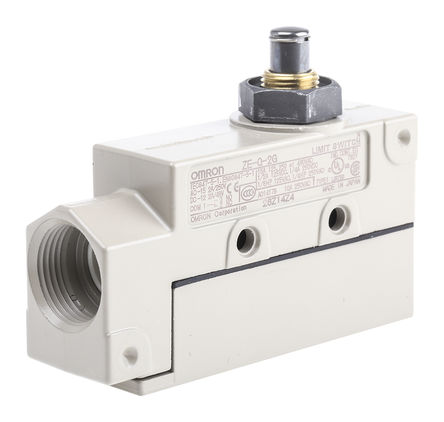

ZE-Q-2G

Specifications

Current Rating Amps

15A AC 500mA DC

Voltage Rated Dc

125V

Fabrika Tedarik Süresi

2 Weeks

Ingress Protection

IP60 - Dust Tight

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Max Voltage Rating Ac

480V

Çalışma Sıcaklığı

-10°C~80°C

Orientation

Straight

Reach Svhc

Yes

Differential Travel

0.002 (0.05mm)

Ratings

Dust Tight, IP60, IP65

Mechanical Life

10,000,000 Cycles

Terminal Stili

Screw Terminal

Overtravel

0.217 (5.5mm)

Switch Function

On-Mom

Akım Değeri

15A

Terminal

Screw

Release Force

114gf

Operating Force

250 ~ 350gf

Max Voltage Rating Dc

250V

Genişlik

86mm

Operating Position

1.500 (38.1mm)

Actuator Type

Round (Pin Plunger)

Switch Type

SNAP ACTING/LIMIT SWITCH

Montaj

Chassis Mount, Panel, Screw

Contact Resistance

15mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2000

Seri

ZE

Pretravel

0.015 (0.4mm)

Uzunluk

63.7mm

Ambalaj

Bulk

Circuit

SPDT

Voltage Rated Ac

125V

Depth

25.4mm

Electricallife

500,000 Cycles

Montaj Tipi

Chassis Mount

RoHS Durumu

RoHS Compliant
