Volume pricing
- 1+ pcs$6.47
- 10+ pcs$6.10
- 100+ pcs$5.76
- 500+ pcs$5.43
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

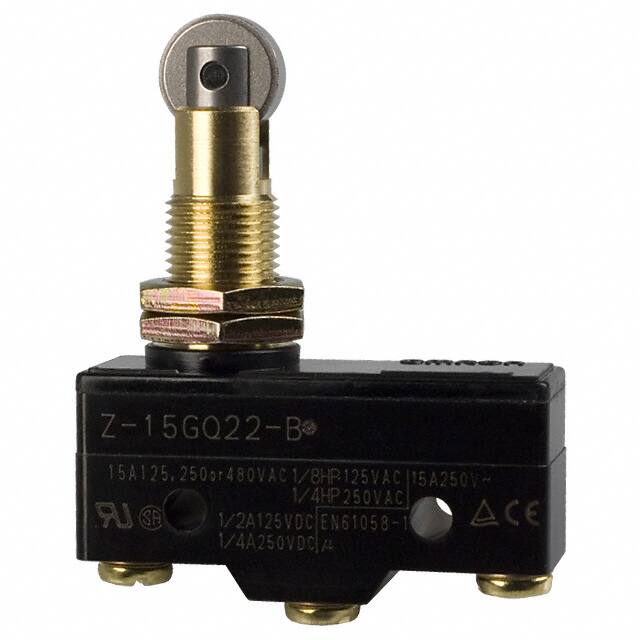

Specifications
- Uzunluk
- 49.2mm
- Max Current Rating
- 15A
- Reach Svhc
- Unknown
- Operating Position
- 1.313 (33.4mm)
- Montaj Tipi
- Panel Mount
- Switch Function
- On-Mom
- Terminal Stili
- Screw Terminal
- Depth
- 17.45mm
- Contact Current Rating
- 15A
- ECCN Kodu
- EAR99
- Circuit
- SPDT
- Actuator Material
- Stainless Steel
- RoHS Durumu
- RoHS Compliant
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Actuator Type
- Roller Plunger
- Genişlik
- 49.2mm
- Overtravel
- 0.141 (3.6mm)
- Electricallife
- 500,000 Cycles
- Yayın Yılı
- 2005
- Seri
- Z
- Orientation
- Straight
- Fabrika Tedarik Süresi
- 10 Weeks
- Montaj
- Panel, Screw
- Mechanical Life
- 10,000,000 Cycles
- Number Of Poles
- 1
- Pozisyon Sayısı
- 2
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -25°C~80°C
- Weight
- 58g
- Onay Kuruluşu
- CSA, UL
- Current Rating Amps
- 15A AC 6A DC
- Kurşunsuz
- Lead Free
- Differential Travel
- 0.002 (0.05mm)
- Operating Force
- 250 ~ 350gf
- Contact Materials
- Silver
- Max Voltage Rating Dc
- 250V
- Pretravelmax
- 0.4 mm
- Max Voltage Rating Ac
- 250V
- Voltage Rated Dc
- 30V
- Voltage Rated Ac
- 125V
