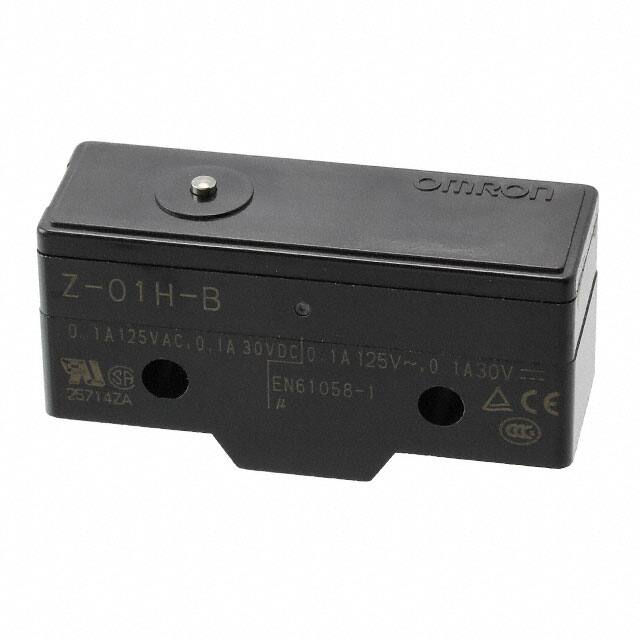

Z-01H-B

Specifications

Operating Position

0.625 (15.9mm)

Montaj Tipi

Chassis Mount

Terminal Stili

Screw Terminal

Switch Function

On-Mom

Body Breadth

17.45 mm

Contact Currentacmax

0.1A

Actuator Travel

0.63 mm

RoHS Durumu

RoHS Compliant

REACH Uyumluluk Kodu

unknown

Actuator Type

Round (Pin Plunger)

Switch Type

SNAP ACTING/LIMIT SWITCH

ECCN Kodu

EAR99

Circuit

SPDT

Overtravel

0.005 (0.13mm)

Electricallife

500,000 Cycles

Yayın Yılı

2005

Body Length Or Diameter

49.2mm

Seri

Z

Differential Travel

0.002 (0.05mm)

Contact Ac Max Rating R Load

.1A@125VAC

Current Rating Amps

100mA AC/DC

Fabrika Tedarik Süresi

2 Weeks

Montaj

Chassis Mount, Panel

Mechanical Life

20,000,000 Cycles

Çalışma Sıcaklığı

-25°C~80°C

Parça Durumu

Active

Voltage Rated Dc

30V

Operating Force

250gf

Pretravelmax

0.5 mm

Voltage Rated Ac

125V

Pretravel

0.020 (0.5mm)

Akım Değeri

100mA

Body Height

25.5mm

Contact Currentdcmax

0.1A

Release Force

80gf

HTS Kodu

8536.50.70.00

Ambalaj

Bulk

Terminal

Screw

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ingress Protection

IP00
