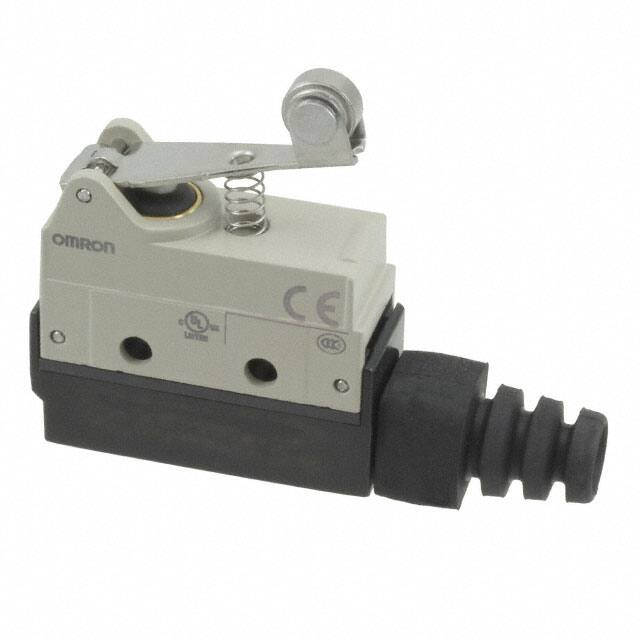

SHL-W255-01

Specifications

Çalışma Sıcaklığı

-10°C~80°C

Ratings

Dust Tight, IP67, Waterproof

Differential Travel

0.098 (2.5mm)

Body Breadth

17.5 mm

Current Rating Amps

100mA AC/DC

Voltage Rated Dc

30V

Fabrika Tedarik Süresi

2 Weeks

Ingress Protection

IP67 - Dust Tight, Waterproof

REACH Uyumluluk Kodu

unknown

Parça Durumu

Active

Release Force

80gf

Terminal

Screw

Operating Force

400gf

HTS Kodu

8536.50.70.00

Terminal Stili

Screw Terminal

Mechanical Life

10,000,000 Cycles

Overtravel

0.118 (3.0mm)

Body Length Or Diameter

73.5mm

Switch Function

On-Mom

Akım Değeri

100mA

Contact Currentdcmax

0.1A

Montaj

Chassis Mount

Contact Ac Max Rating R Load

.1A@125VAC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2006

Operating Position

1.300 (33.0mm)

Actuator Type

Lever, Roller

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Currentacmax

0.1A

Montaj Tipi

Chassis Mount

Electricallife

500,000 Cycles

RoHS Durumu

RoHS Compliant

Seri

SHL

Pretravel

0.315 (8.0mm)

ECCN Kodu

EAR99

Actuator Travel

11 mm

Pretravelmax

3 mm

Ambalaj

Bulk

Body Height

32.9mm

Circuit

SPDT
