Volume pricing
- 1+ pcs$24.04
- 10+ pcs$22.68
- 100+ pcs$21.40
- 500+ pcs$20.18
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

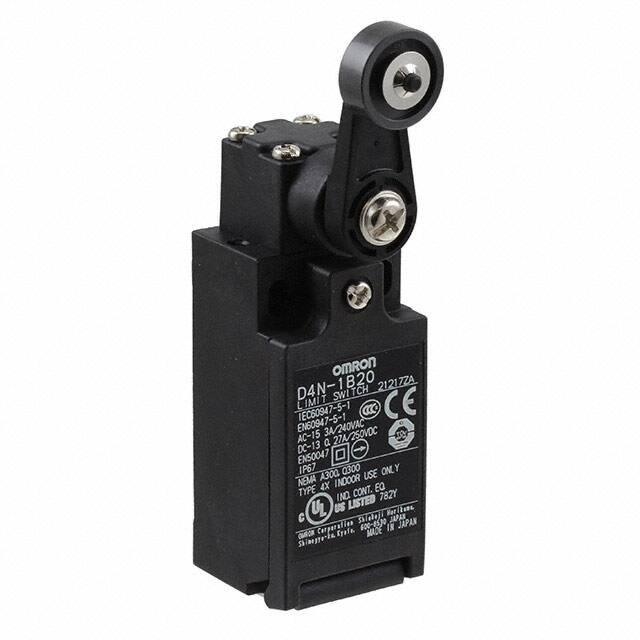

Specifications
- Voltage Rated Dc
- 125V
- REACH Uyumluluk Kodu
- unknown
- Voltage Rated Ac
- 120V
- Akım Değeri
- 2.5A
- Overtravel
- 40°
- Montaj
- Chassis Mount, Screw
- Differential Travel
- 14°
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Circuit
- DPST-NC
- Çalışma Sıcaklığı
- -30°C~70°C
- Contact Dc Max Rating R Load
- 2.5A@250VDC
- Max Voltage Rating Ac
- 250V
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- RoHS Durumu
- Non-RoHS Compliant
- Additional Feature
- P.T.= 27 DEG, O.T.= 67 DEG
- Özellikler
- Resin Lever, Resin Roller
- Depth
- 47mm
- Yükseklik
- 107.75mm
- Terminal
- Screw
- Ambalaj
- Bulk
- Actuator Type
- Side Rotary, Roller
- Throw Configuration
- DPST, SPDT
- Mechanical Life
- 15,000,000 Cycles
- Onay Kuruluşu
- CCC, CSA, TUV, UL
- Release Force
- 51gf
- Montaj Tipi
- Chassis Mount
- Contact Resistance
- 25mOhm
- Body Breadth
- 30 mm
- Parça Durumu
- Active
- Terminal Stili
- Screw Terminal
- Seri
- D4N
- Ratings
- Dust Tight, IP67, Waterproof
- Operating Force
- 510gf
- ECCN Kodu
- EAR99
- Uzunluk
- 31mm
- HTS Kodu
- 8536.50.70.00
- Pretravel
- 18°
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Electricallife
- 300,000 Cycles
- Orientation
- Right Angle
