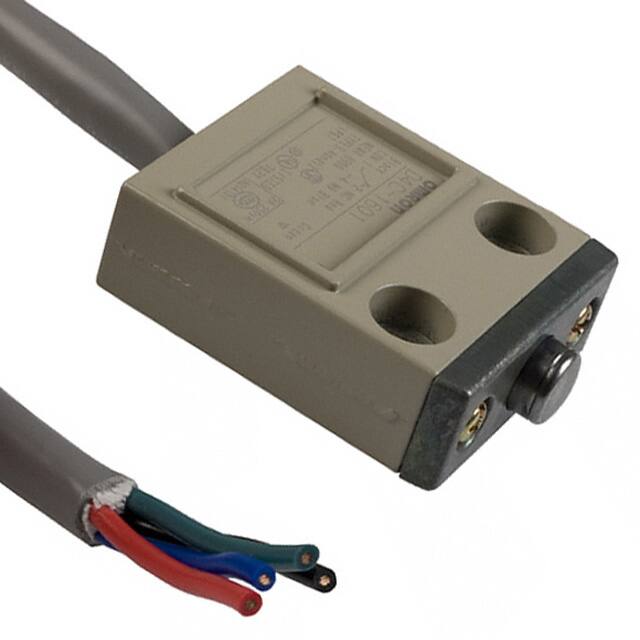

Specifications
- Contact Currentacmax
- 5A
- Contact Dc Max Rating R Load
- 4A@30VDC
- Operating Force
- 1200gf
- Additional Feature
- ELECTRICAL LIFE IS CALCULATED AT AN OPERATING TEMPERATURE 5 DEGREE TO 35 DEGREE
- Number Of Poles
- 1
- Akım Değeri
- 5A
- Body Height
- 49mm
- Reach Svhc
- Unknown
- Genişlik
- 40mm
- Orientation
- Straight
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- HTS Kodu
- 8536.50.70.00
- Ratings
- Dust Tight, IP67, Waterproof
- Özellikler
- Cable Length 3m
- Depth
- 16mm
- Terminal Stili
- Cable Leads
- ECCN Kodu
- EAR99
- Current Rating Amps
- 5A AC 4A DC
- Contact Currentdcmax
- 4A
- Montaj Tipi
- Chassis Mount
- Seri
- D4C
- Max Voltage Rating Ac
- 250V
- Actuator Type
- Round (Pin Plunger)
- Differential Travel
- 0.008 (0.2mm)
- Voltage Rated Dc
- 30V
- Mechanical Life
- 10,000,000 Cycles
- Terminal
- Cable Leads
- Operating Position
- 0.618 (15.7mm)
- RoHS Durumu
- RoHS Compliant
- Kurşunsuz
- Lead Free
- Ambalaj
- Bulk
- Overtravel
- 0.118 (3.0mm)
- Çalışma Sıcaklığı
- -10°C~70°C
- Voltage Rated Ac
- 250V
- Max Voltage Rating Dc
- 30V
- Pretravel
- 0.071 (1.8mm)
- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Montaj
- Chassis Mount, Panel, Screw
- Yayın Yılı
- 2006
- Electricallife
- 200,000 Cycles
