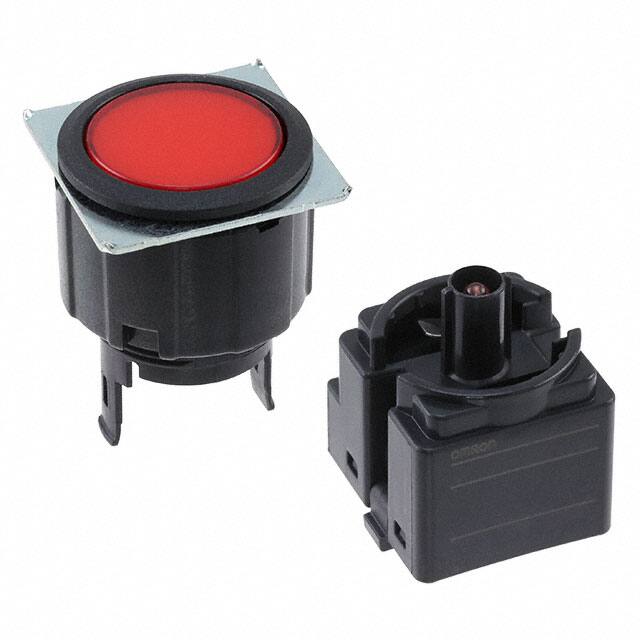

A3UL-TBR-2A2C-M

Specifications

Circuit

DPDT

Seri

A3U

Actuator Length

0m

Color Actuatorcap

Clear (Red Filter/Diffuser)

Montaj Tipi

Panel Mount, Front

Electricallife

200,000 Cycles

Panel Cutout Dimensions

Circular - 25.20mm Dia

Contact Currentdcmax

0.1A

Contact Resistance

250mOhm

Orientation

Straight

Max Voltage Rating Dc

30V

Ambalaj

Bulk

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Illumination Type

LED

Montaj

Front, Panel

Terminal Stili

Connector

Switch Function

On-Mom

Çalışma Sıcaklığı

-20°C~55°C

Illumination Color

Red

Akım Değeri

100mA

Contact Dc Max Rating R Load

0.1A@30VDC

Illumination Voltage Nominal

12VDC

Illumination Type Color

LED, Red

Yayın Yılı

2013

Weight

30g

Mechanical Life

1,000,000 Cycles

Body Length Or Diameter

29.9974mm

Fabrika Tedarik Süresi

20 Weeks

Current Rating Amps

100mA DC

Insulation Resistance

100000000Ohm

Tip

Standard, Illuminated

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Voltage Rated Dc

30V

Ingress Protection

IP40

Actuator Type

Round, Button, Flush
