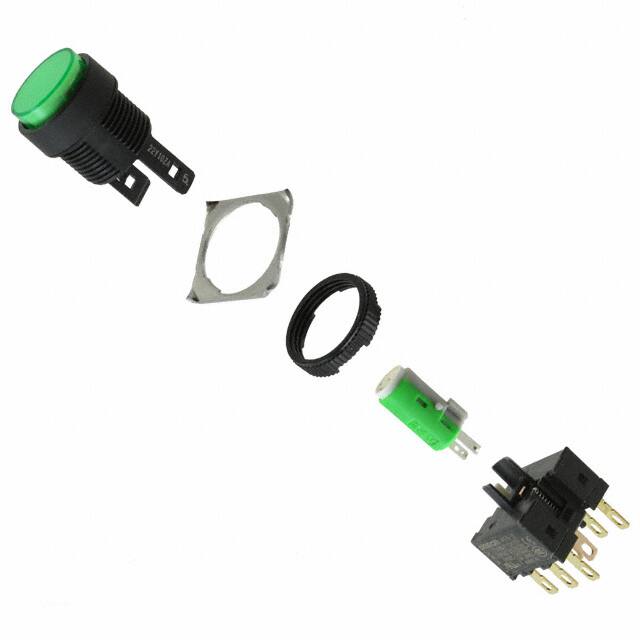

A165L-TGA-24-1

Specifications

Terminal Stili

Solder, Quick Connect - 0.110 (2.8mm)

Operating Forcemax

4.91 N

Panel Cutout Dimensions

Circular - 16.00mm Dia

Ratings

Dust Tight, IP65, Water Resistant

Yayın Yılı

2015

Kurşunsuz

Lead Free

Contact Current Rating

10mA

Contact Currentdcmax

3A

Montaj

Front, Panel

Contact Dc Max Rating R Load

3A@30VDC

Current Rating Amps

5A AC

Fabrika Tedarik Süresi

12 Weeks

Ambalaj

Bulk

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Mechanical Life

200,000 Cycles

Actuator Type

Round, Button

Seri

A16

Switch Function

On-On

Montaj Tipi

Panel Mount, Front

Çap

18mm

REACH Uyumluluk Kodu

unknown

Voltage Rated Dc

30V

HTS Kodu

8536.50.90.33

Akım Değeri

5A

Illumination Type

LED

Ingress Protection

IP66 - Dust Tight, Oil and Water Resistant

Color Actuatorcap

Green

Illumination Type Color

Incandescent, Green

Çalışma Sıcaklığı

-10°C~55°C

Tip

Standard, Illuminated

Illumination Voltage Nominal

24VAC/DC

Body Breadth

15.8 mm

Terminal

Solder

Electricallife

100,000 Cycles

Circuit

SPDT

Contact Ac Max Rating R Load

5A@125VAC

Contact Currentacmax

5A

Voltage Rated Ac

125V
