Specifications
- Qualification Status
- Not Qualified
- Switcher Configuration
- PHASE-SHIFT
- Çalışma Sıcaklığı
- -55°C~150°C TJ
- Besleme Gerilimi
- 3.3V~16V
- Terminal Pozisyonu
- QUAD
- JESD-609 Kodu
- e4
- Interface
- PWM
- Özellikler
- Bootstrap Circuit, 5V Regulated Output
- Terminal Adımı
- 0.5mm
- REACH Uyumluluk Kodu
- unknown
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Input Voltagenom
- 12V
- Maks. Oturma Yüksekliği
- 0.9mm
- Montaj Tipi
- Surface Mount
- Uzunluk
- 8mm
- Pin Sayısı
- 56
- Parça Durumu
- Obsolete
- Fault Protection
- Over Temperature, UVLO
- Voltage Load
- 24V Max

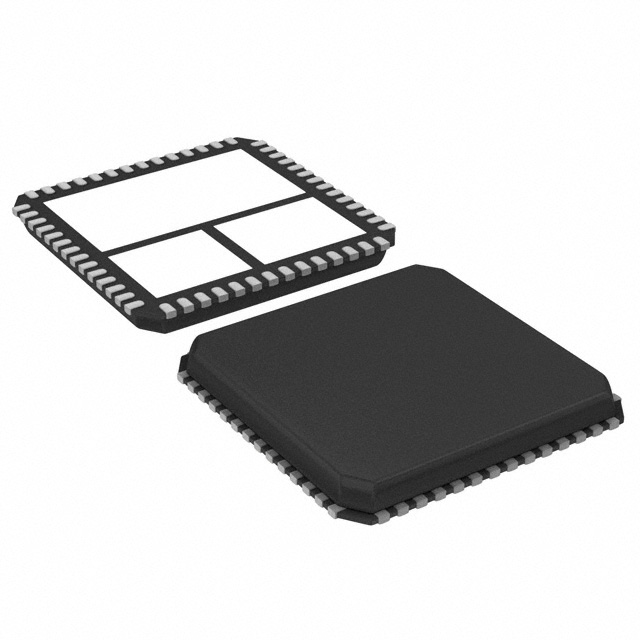

- Kılıf / Paket
- 56-VFQFN Exposed Pad
- Terminal Formu
- NO LEAD
- Input Voltage Max
- 14V
- HTS Kodu
- 8541.29.00.75
- Input Voltage Min
- 6V
- Ambalaj
- Tape & Reel (TR)
- Control Technique
- PULSE WIDTH MODULATION
- Tepe Reflow Sıcaklığı (°C)
- 260
- Tepe Reflow Süresi (maks. sn)
- 30
- RoHS Durumu
- ROHS3 Compliant
- Terminal Kaplaması
- SILVER
- Switching Frequencymax
- 1000kHz
- Yayın Yılı
- 2006
- Terminal Sayısı
- 56
- Analog Ic Other Type
- SWITCHING REGULATOR
- Temel Parça No
- PIP212-12M
- Kurşunsuz Kodu
- yes
- Jesd30 Code
- S-PQCC-N56
- Fonksiyon Sayısı
- 1
- Genişlik
- 8mm
- Applications
- Synchronous Buck Converters
