Specifications
- Jesd30 Code
- S-PQCC-N28
- Besleme Gerilimi
- 3V
- Parça Durumu
- Active
- HTS Kodu
- 8542.39.00.01
- Tip
- Linear
- Maks. Oturma Yüksekliği
- 1mm
- Montaj Tipi
- Surface Mount
- Terminal Kaplaması
- Nickel/Palladium/Gold (Ni/Pd/Au)
- RoHS Durumu
- ROHS3 Compliant
- Number Of Segments
- 16
- Internal Switchs
- Yes
- Fabrika Tedarik Süresi
- 7 Weeks
- Temel Parça No
- PCA9685
- Yayın Yılı
- 2003
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Tepe Reflow Sıcaklığı (°C)
- 260

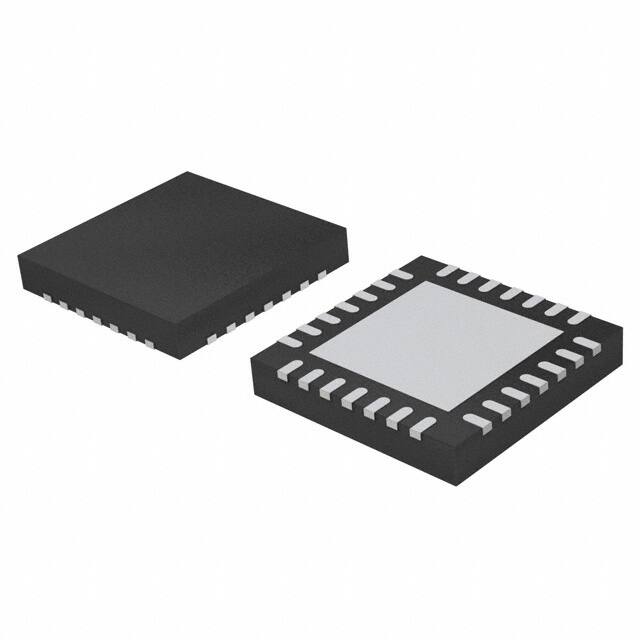

- Kılıf / Paket
- 28-VQFN Exposed Pad
- Yüzey Montaj
- YES
- Number Of Outputs
- 16
- Uzunluk
- 6mm
- Terminal Sayısı
- 28
- JESD-609 Kodu
- e4
- Terminal Pozisyonu
- QUAD
- Applications
- Backlight
- Voltage Supply Min
- 2.3V
- Dimming
- PWM
- Ambalaj
- Tape & Reel (TR)
- Voltage Supply Max
- 5.5V
- Qualification Status
- Not Qualified
- Pin Sayısı
- 28
- Çalışma Sıcaklığı
- -40°C~85°C TA
- Fonksiyon Sayısı
- 1
- Data Input Mode
- SERIAL
- Terminal Formu
- NO LEAD
- Genişlik
- 6mm
- Tepe Reflow Süresi (maks. sn)
- 30
- Terminal Adımı
- 0.65mm
- Power Supplies
- 2.5/5V
- Multiplexed Display Capability
- NO
- Fmaxmin
- 1 MHz
