Specifications
- HTS Kodu
- 8541.29.00.75
- Terminal Sayısı
- 6
- Terminal Pozisyonu
- DUAL
- Number Of Elements
- 1
- Terminal Kaplaması
- Tin (Sn)
- Transistor Application
- AMPLIFIER
- Power Output
- 35W
- Case Connection
- SOURCE
- Drain Currentmax Abs Id
- 6A
- Gain
- 13.5dB
- Operating Temperature Max
- 200°C
- Operating Mode
- ENHANCEMENT MODE
- Terminal Formu
- C BEND

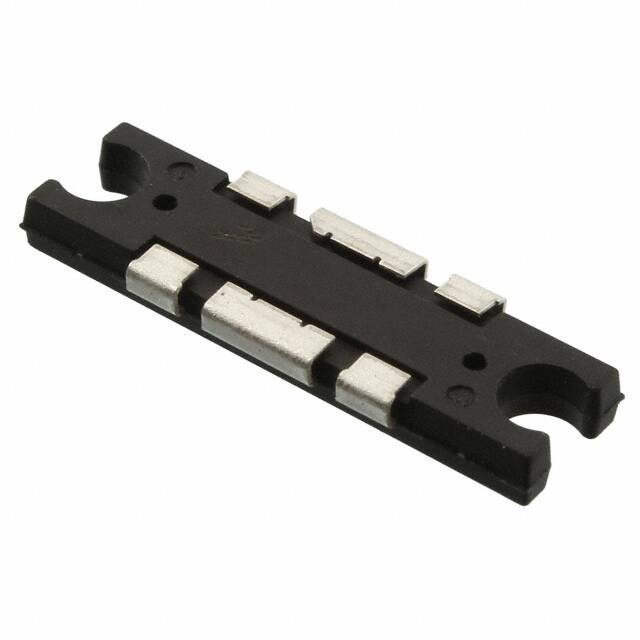

- Temel Parça No
- MRF1535
- Power Dissipationmax Abs
- 135W
- Jesd30 Code
- R-PDFM-C6
- Yüzey Montaj
- YES
- Tepe Reflow Sıcaklığı (°C)
- 260
- Ds Breakdown Voltagemin
- 40V
- Current Test
- 500mA
- Yayın Yılı
- 2006
- Transistor Type
- LDMOS
- Frekans
- 520MHz
- Polaritychannel Type
- N-CHANNEL
- JESD-609 Kodu
- e3
- Configuration
- SINGLE
- Ambalaj
- Tape & Reel (TR)
- Nominal Gerilim
- 40V
- Current Rating Amps
- 6A
- Voltage Test
- 12.5V
- Kılıf / Paket
- TO-272AA
- ECCN Kodu
- EAR99
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Tepe Reflow Süresi (maks. sn)
- 40
- Transistor Element Material
- SILICON
- Qualification Status
- Not Qualified
- Parça Durumu
- Not For New Designs
- Fabrika Tedarik Süresi
- 10 Weeks
- Fet Technology
- METAL-OXIDE SEMICONDUCTOR
