MCIMX7D5EVM10SD

Specifications

Terminal Sayısı

541

Upsucsperipheral Ics Type

MICROPROCESSOR, RISC

Yayın Yılı

2012

Supply Voltagemin Vsup

1.045V

Graphics Acceleration

No

Format

FLOATING POINT

Coprocessorsdsp

Multimedia; NEON™ MPE

Security Features

A-HAB, ARM TZ, CAAM, CSU, SJC, SNVS

Jesd30 Code

S-PBGA-B541

Low Power Mode

YES

Yüzey Montaj

YES

Boundary Scan

YES

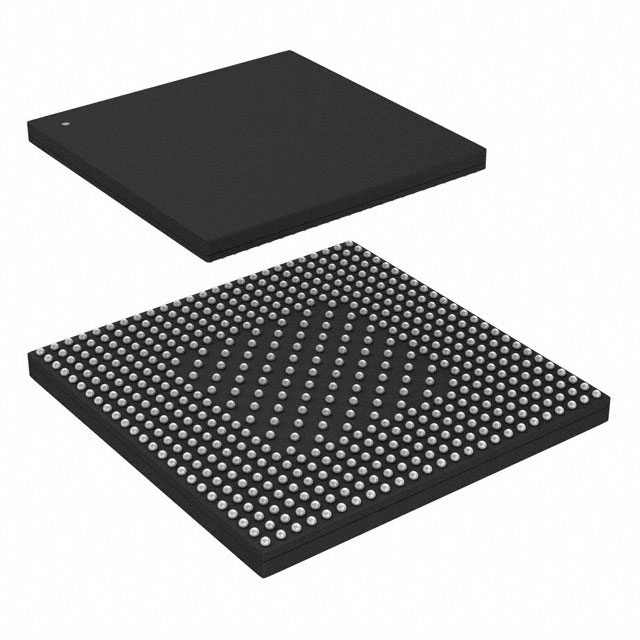

Kılıf / Paket

541-LFBGA

External Data Bus Width

32

Additional Interfaces

AC'97, CAN, eCSPI, I2C, I2S, MMC/SD/SDIO, PCIe, QSPI, SAI, UART

Terminal Formu

BALL

HTS Kodu

8542.31.00.01

Number Of Coresbus Width

2 Core 32-Bit

Besleme Gerilimi

1.1V

Ethernet

10/100/1000Mbps (2)

Ambalaj

Tray

Seri

i.MX7D

RoHS Durumu

ROHS3 Compliant

Address Bus Width

16

Ram Controllers

LPDDR2, LPDDR3, DDR3, DDR3L

Tepe Reflow Sıcaklığı (°C)

260

Tepe Reflow Süresi (maks. sn)

40

Speed

1.0GHz

Fabrika Tedarik Süresi

16 Weeks

Voltage Io

1.8V 3.3V

Uzunluk

19mm

Usb

USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)

Parça Durumu

Active

Core Processor

ARM® Cortex®-A7, ARM® Cortex®-M4

Integrated Cache

YES

Bit Size

32

Supply Voltagemax Vsup

1.25V

Çalışma Sıcaklığı

-20°C~105°C TJ

Display Interface Controllers

Keypad, LCD, MIPI

Terminal Pozisyonu

BOTTOM
